Circuit Diagram & Connector Identification

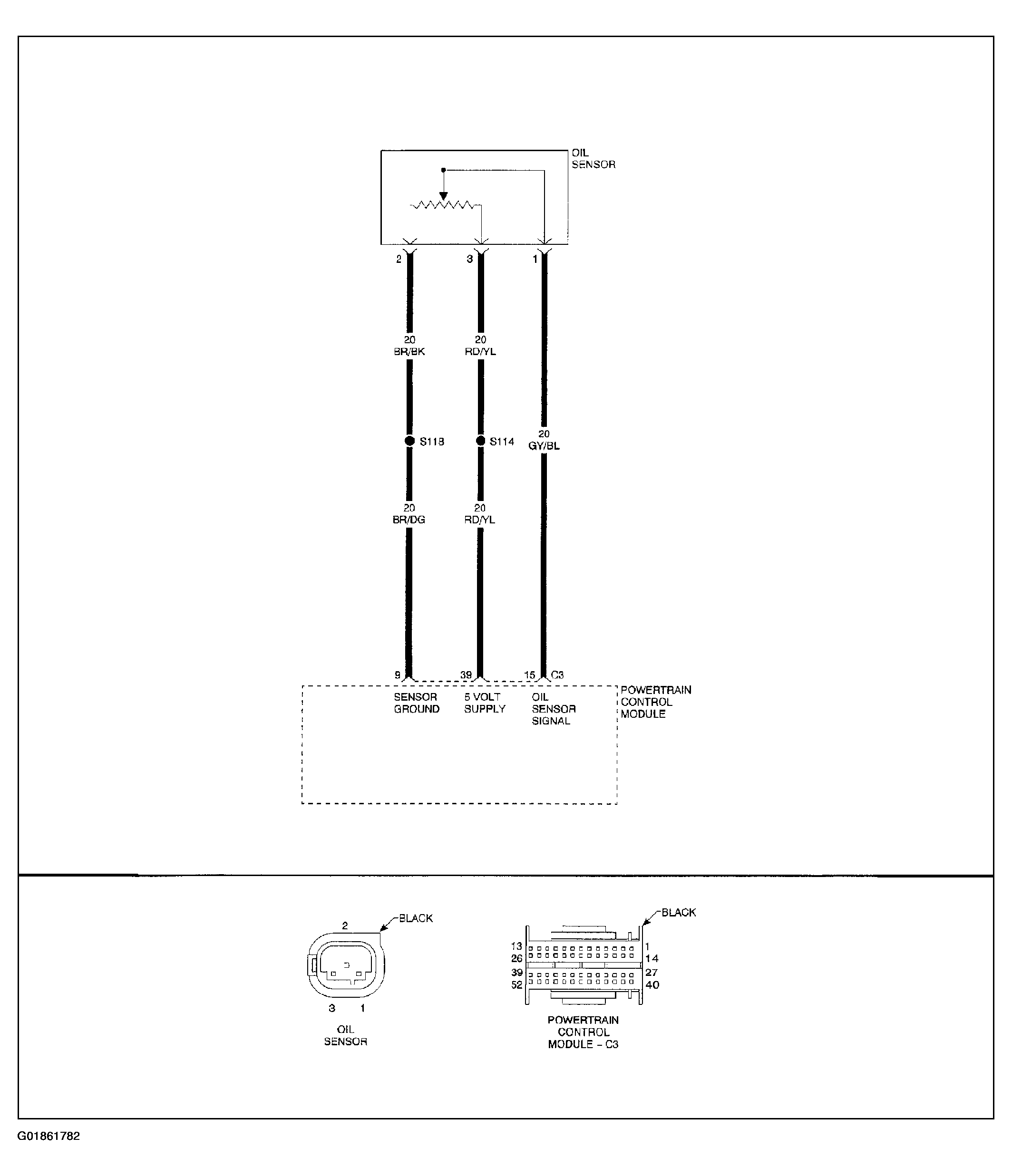

Fig 1: Identifying Engine Oil Sensor Performance Circuit Diagram & Connector Identification

G01861782

Courtesy of DAIMLERCHRYSLER CORP.
