Circuit Diagram & Connector Identification

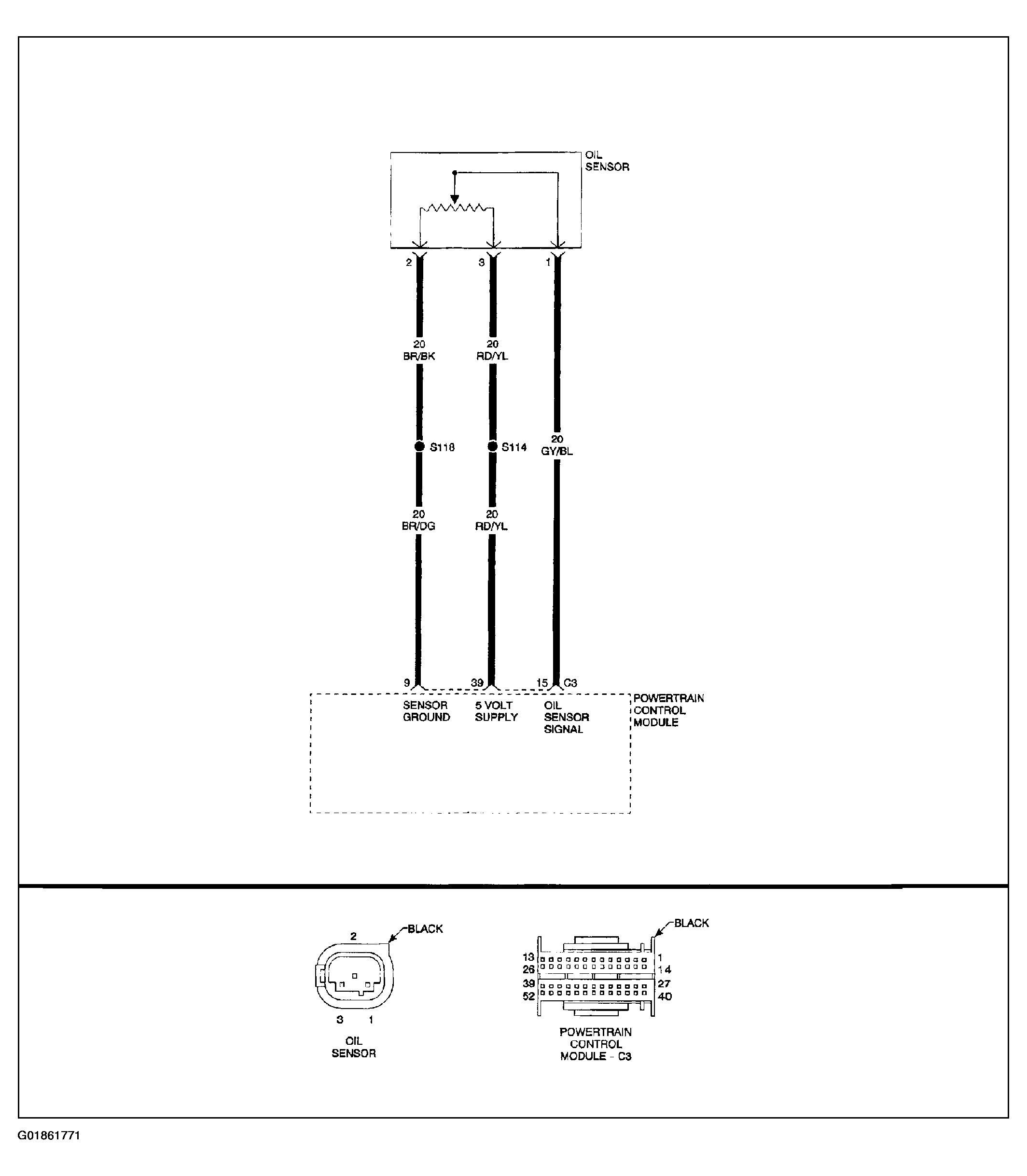

Fig 1: Identifying Engine Oil Sensor Over Temperature Circuit Diagram & Connector Identification

G01861771

Courtesy of DAIMLERCHRYSLER CORP.
