Circuit Diagram & Connector Identification

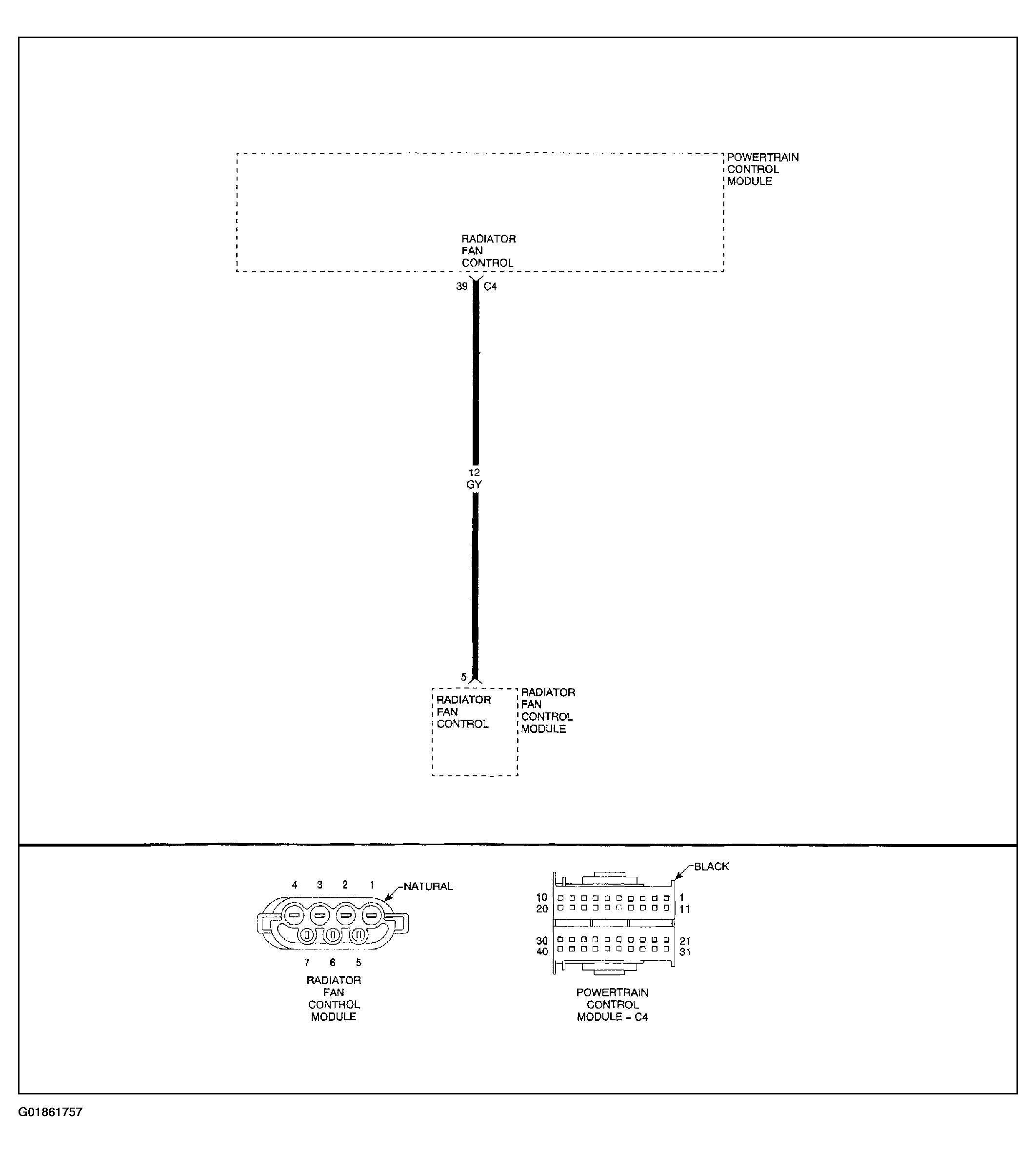

Fig 1: Identifying Cooling Fan Control Circuit Low Circuit Diagram & Connector Identification

G01861757

Courtesy of DAIMLERCHRYSLER CORP.
