Vapor Canister: Removal

  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the shield retaining nuts from splash shield.
  4. Remove the splash shield.
  5. Carefully disconnect the vapor/vacuum/vent hoses (2).

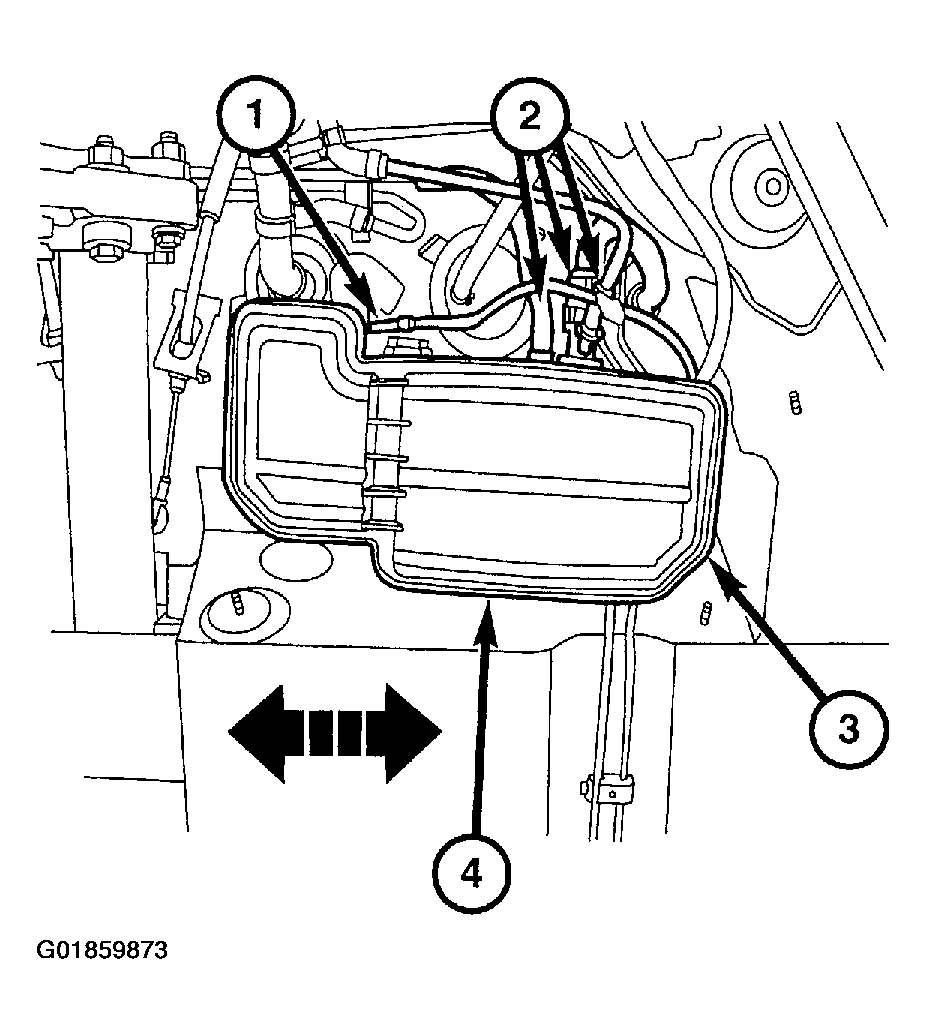

    Fig 1: Disconnecting Vapor/Vacuum/Vent Hoses, EVAP Canister & Charcoal Canister Shutoff Valve Harness Connector
    G01859873Courtesy of DAIMLERCHRYSLER CORP.
  6. Slide the EVAP canister (4) to the left, off of mounting bracket.
  7. Disconnect the charcoal canister shutoff valve harness connector (1).
  8. Depress the locking tab (2) to release charcoal canister shutoff valve (1).

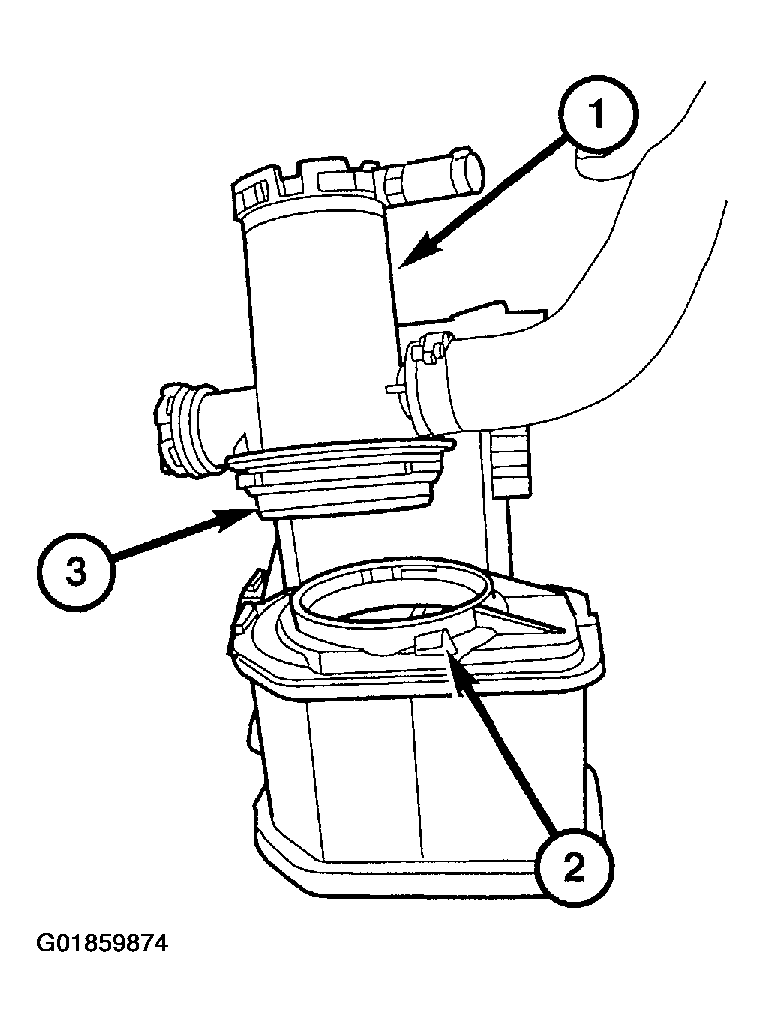

    Fig 2: Removing Charcoal Canister Shutoff Valve
    G01859874Courtesy of DAIMLERCHRYSLER CORP.
  9. While holding the lock tab (2) in release position, turn charcoal canister shutoff valve (1) clockwise and remove from EVAP canister.
  10. Discard the old O-ring (3).
