Oil Level/Temperature Sensor: Removal

  1. Remove the lower oil pan. See OIL PAN .
  2. Disconnect the oil level/temperature sensor harness connector (1).

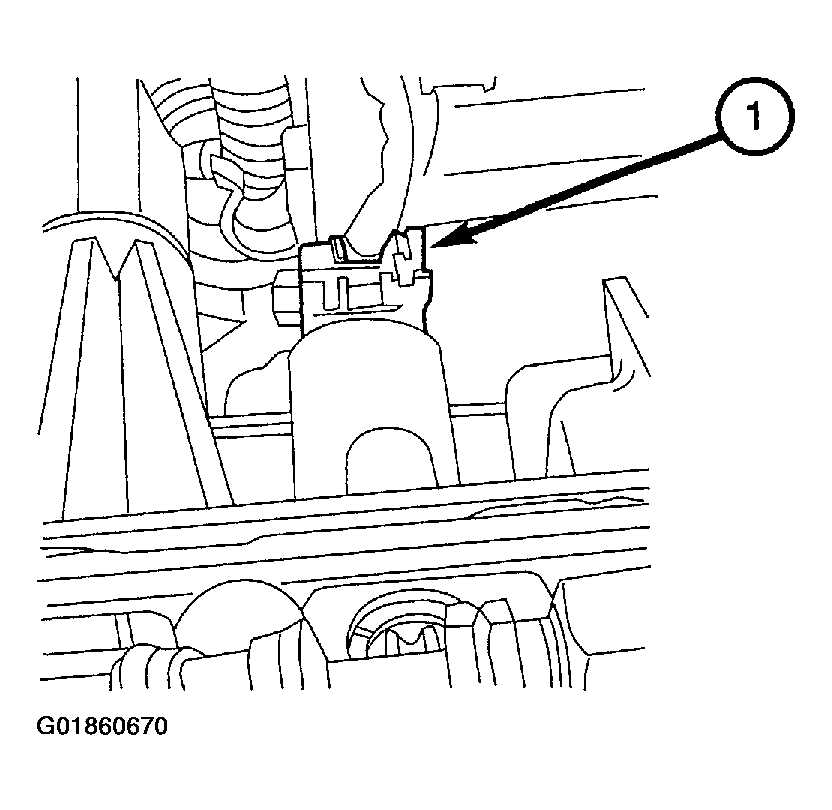

    Fig 1: Disconnecting Oil Level/Temperature Sensor Harness Connector
    G01860670Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the two oil level/temperature sensor screws (1).
  4. Remove the two harness retainer screws (2) and the oil level/temperature sensor.

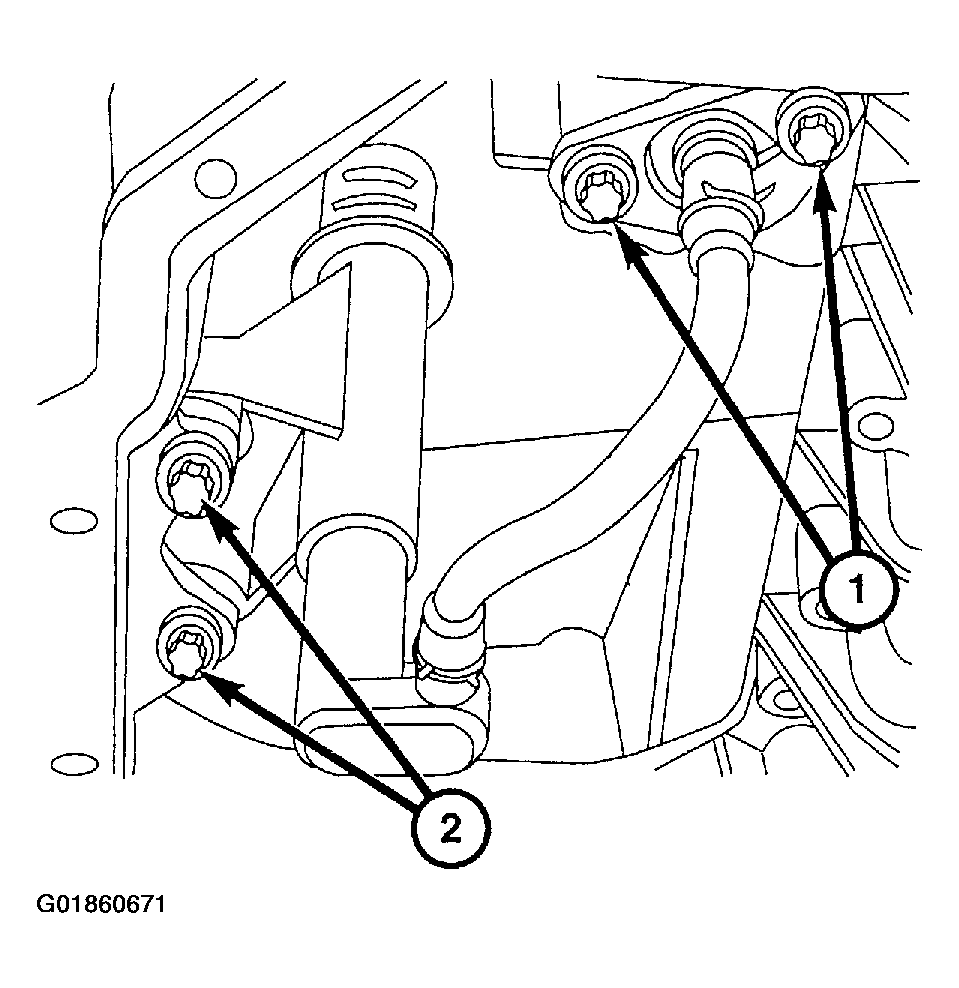

    Fig 2: Removing Oil Level/Temperature Sensor & Screws
    G01860671Courtesy of DAIMLERCHRYSLER CORP.
