Torque Specifications

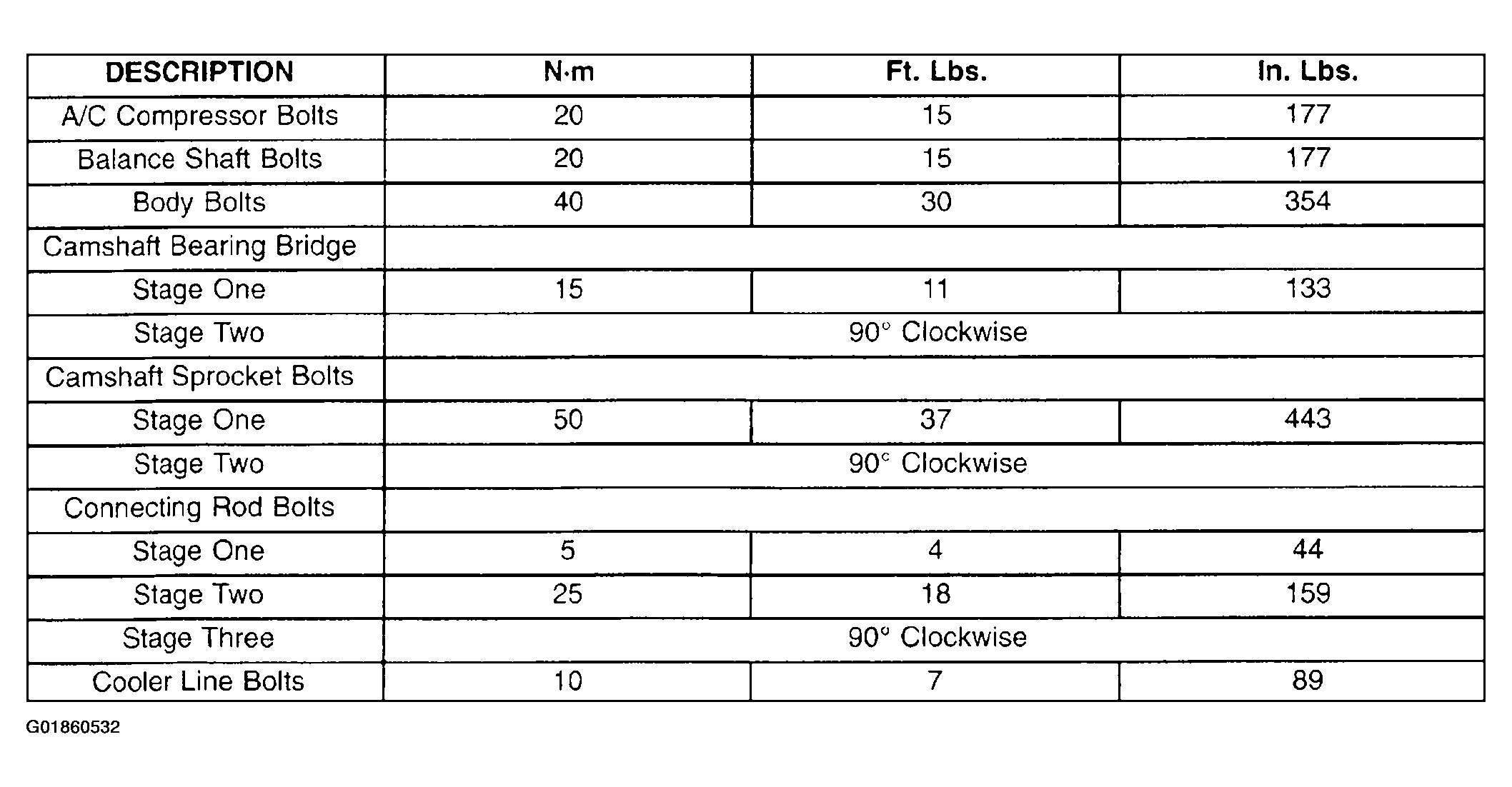

Fig 1: Torque Specifications Table (1 Of 3)
G01860532Courtesy of DAIMLERCHRYSLER CORP.

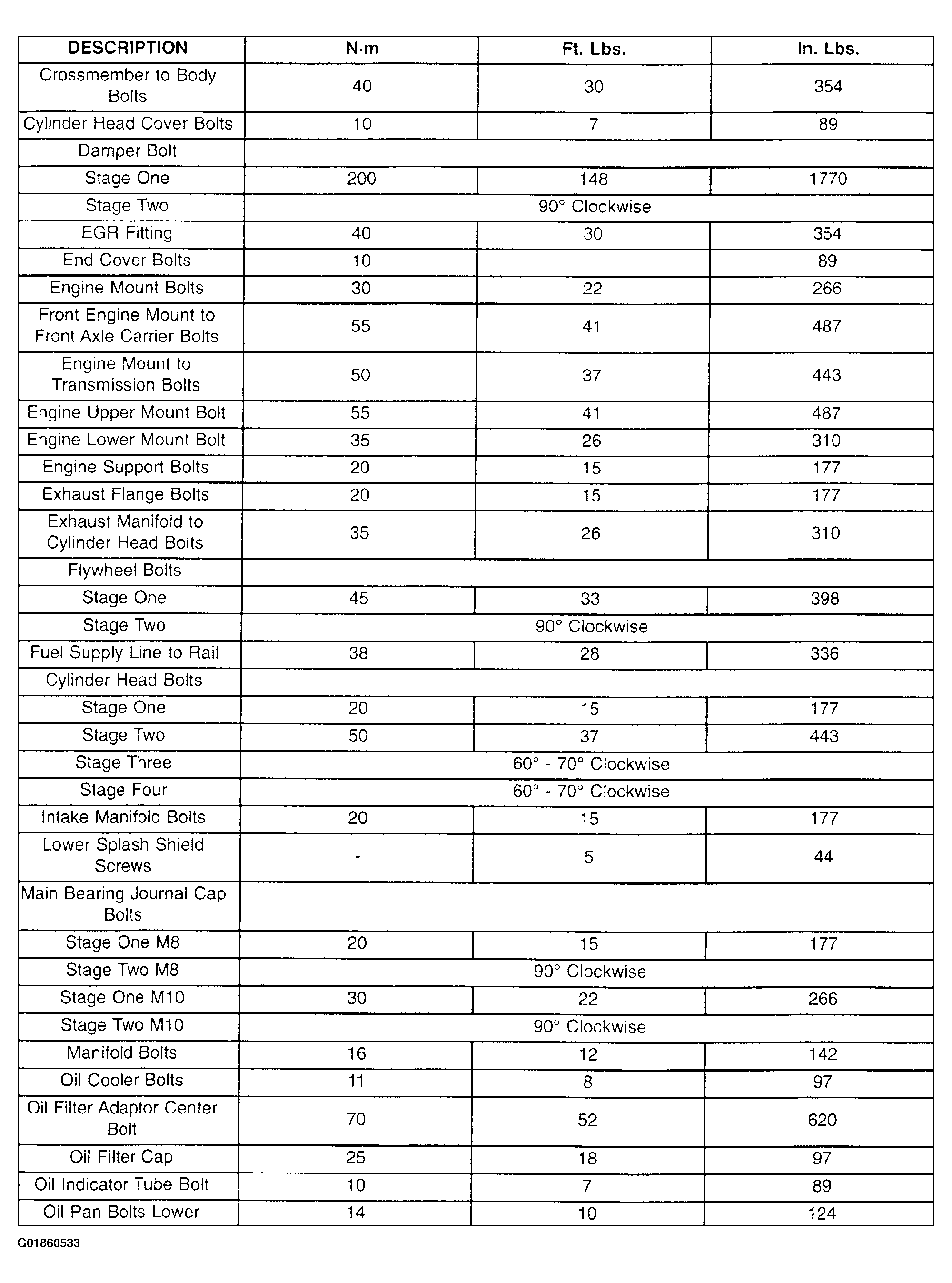

Fig 2: Torque Specifications Table (2 Of 3)
G01860533Courtesy of DAIMLERCHRYSLER CORP.

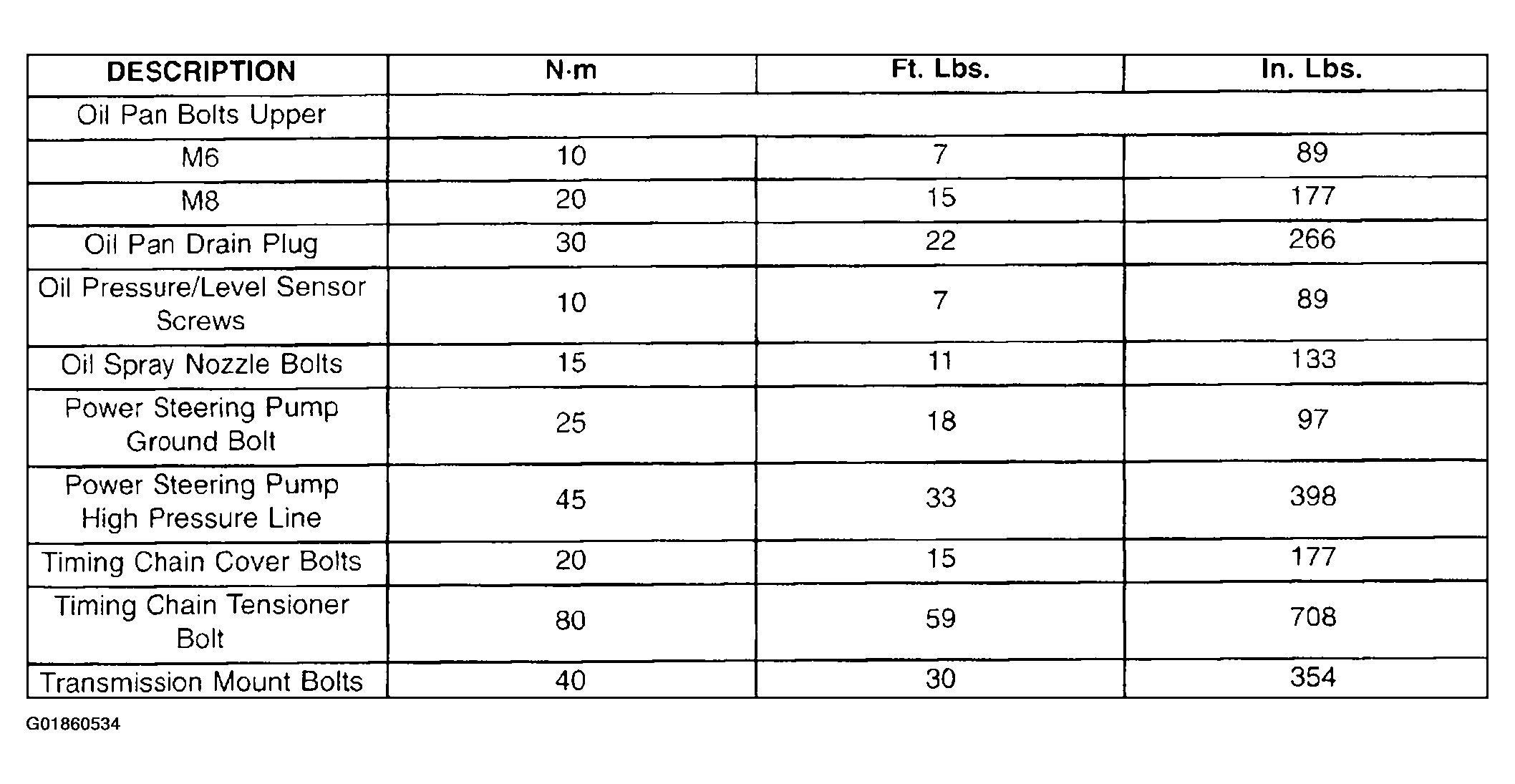

Fig 3: Torque Specifications Table (3 Of 3)
G01860534Courtesy of DAIMLERCHRYSLER CORP.
