Front Heat Shield: Installation

  1. Position the heat shield on the floor pan.
  2. Install the heat shield nuts (1). Tighten the nuts to 10 N.m (89 in. lbs.).

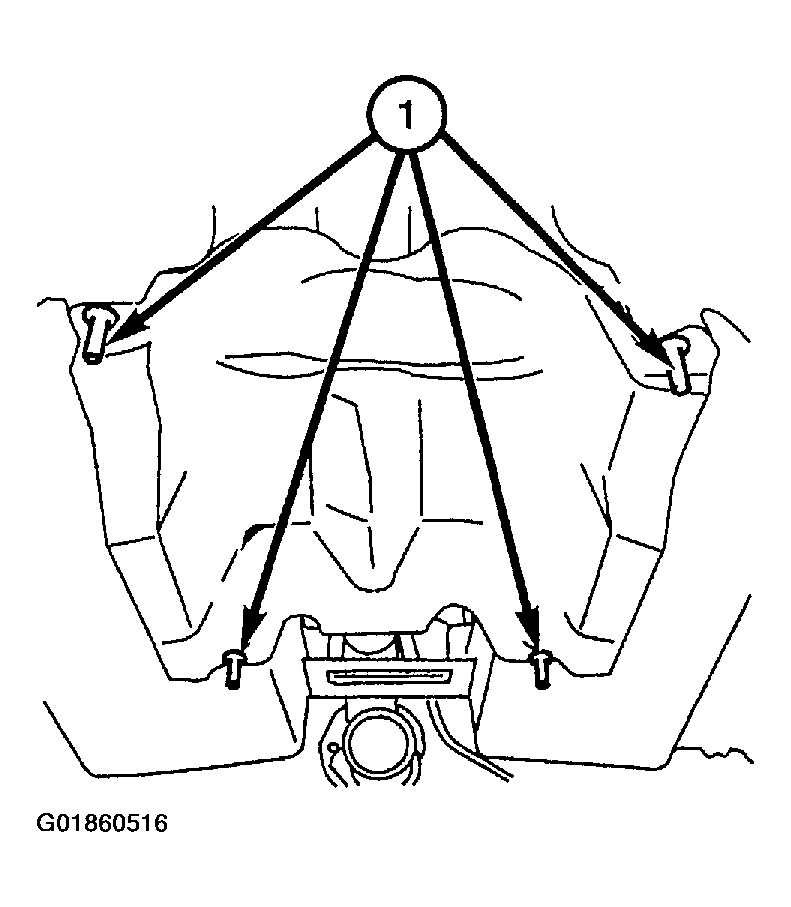

    Fig 1: Installing Heat Shield
    G01860516Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the front exhaust section. See FRONT EXHAUST PIPES .
  4. Start the engine and check for exhaust leaks.
