ESP Lateral Acceleration Sensor Connector End View

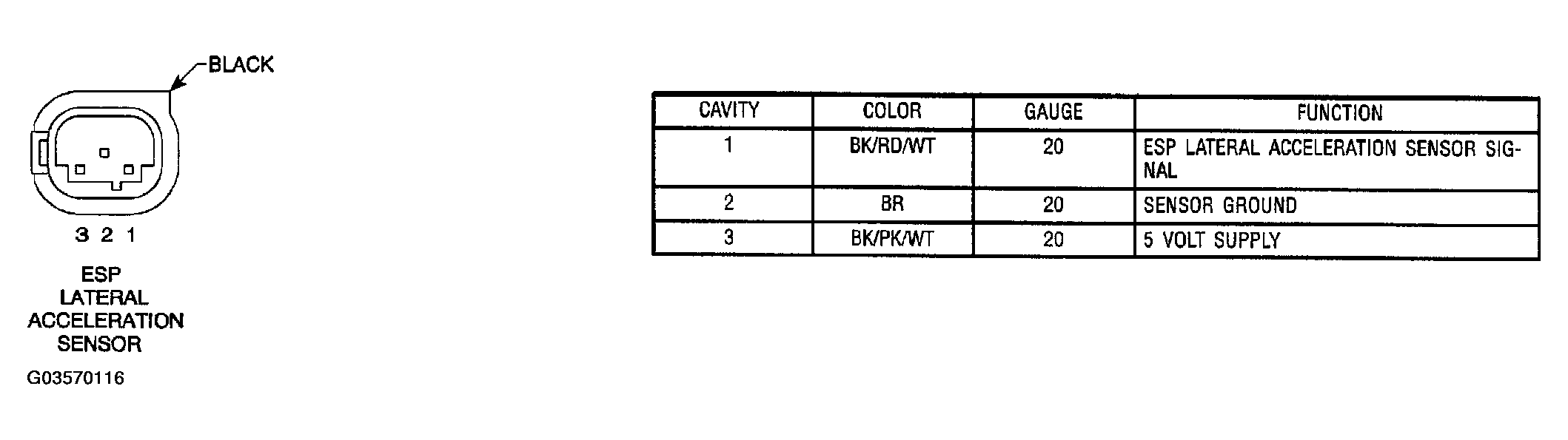

Fig 1: ESP Lateral Acceleration Sensor Connector End View

G03570116

Courtesy of DAIMLERCHRYSLER CORP.
