Clutch Interlock Switch Connector End View

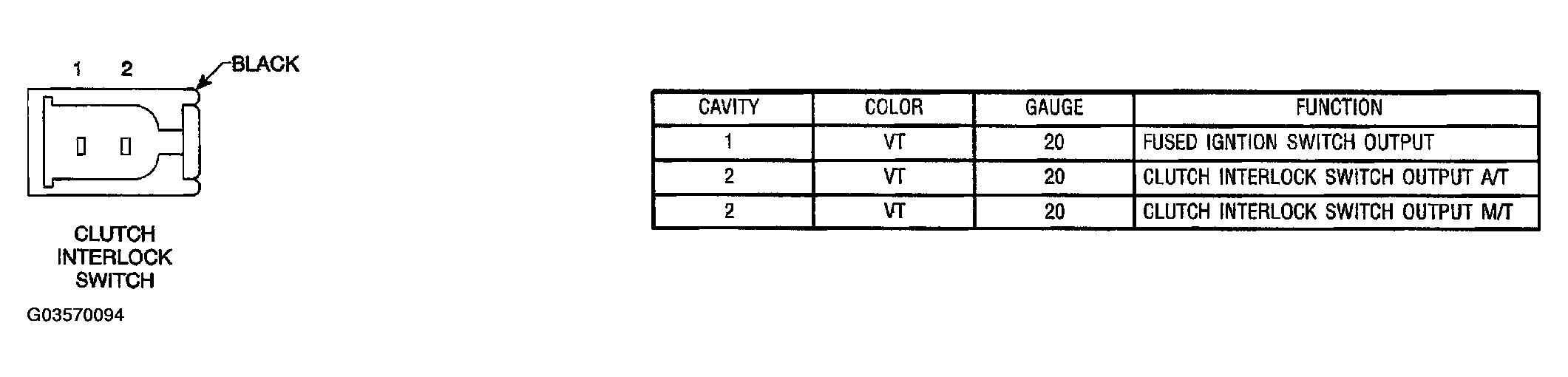

Fig 1: Clutch Interlock Switch Connector End View

G03570094

Courtesy of DAIMLERCHRYSLER CORP.
