Horn System: Horn: Removal

  1. Disconnect the negative battery cable.
  2. Remove the grille. See BODY article.
  3. Disconnect the horn harness connector (1).

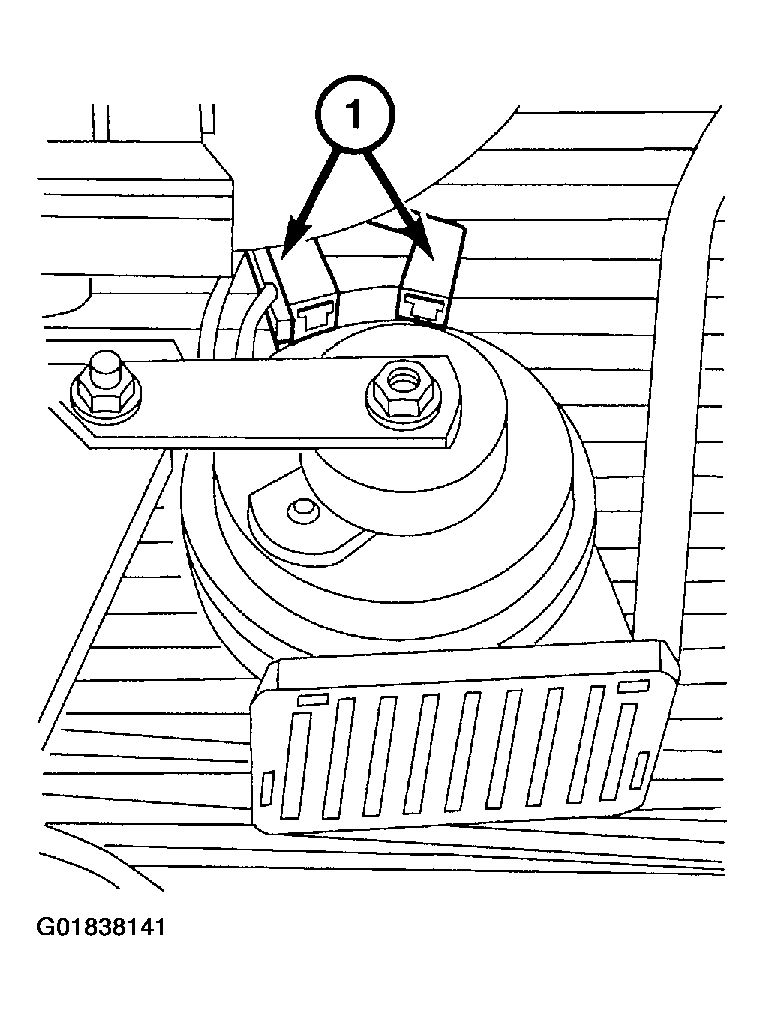

    Fig 1: Disconnecting Horn Harness Connector
    G01838141Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Do not disconnect the horn from the horn mounting bracket.
  4. Remove the horn bracket mounting bolt (2) from the core support brace (1), and remove the horn.

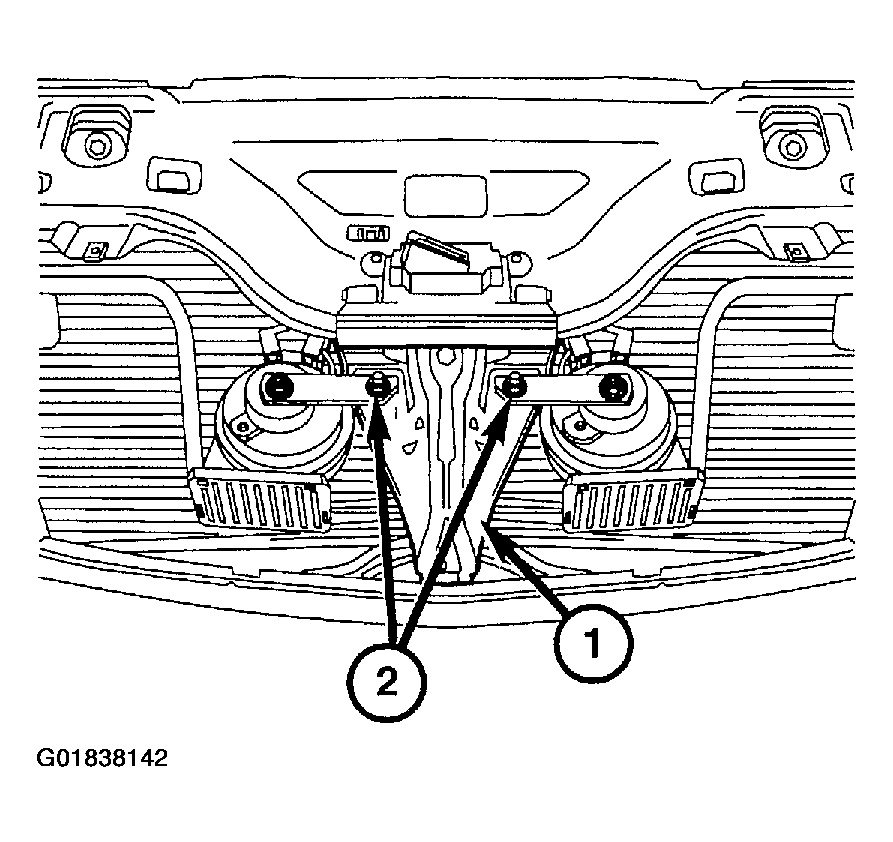

    Fig 2: Removing Horn Bracket Mounting Bolt & Horn
    G01838142Courtesy of DAIMLERCHRYSLER CORP.
