Horn System: Horn: Installation

  1. Position the horn(s) (1) onto the vehicle core support and install the horn bracket mounting bolt. Tighten the bolt to 11.3 N.m (100 in. lbs.).

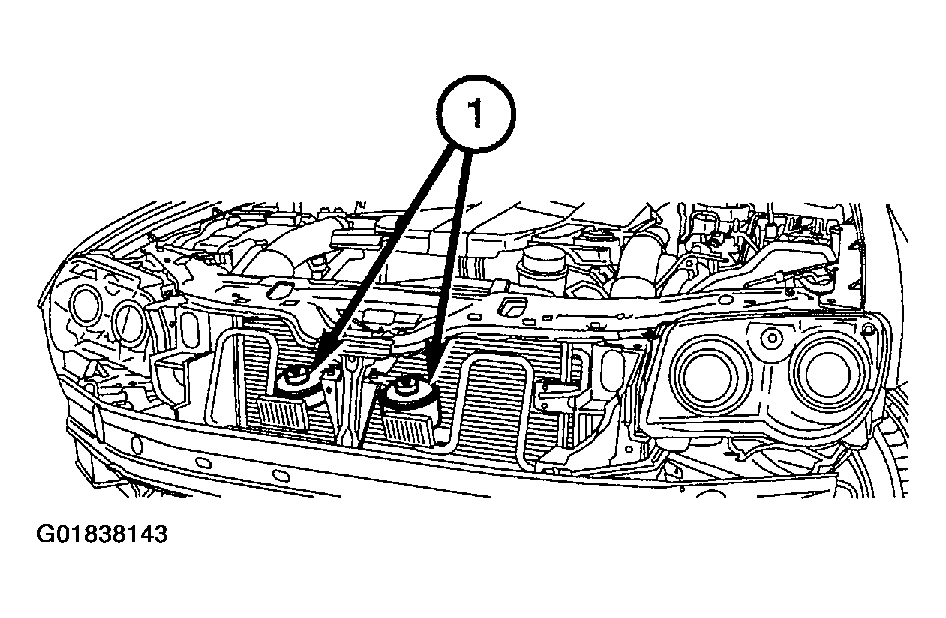

    Fig 1: Installing Horn
    G01838143Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the horn harness connector.
  3. Install the grille. See BODY article.
  4. Connect the negative battery cable.
