Horn Switch: Removal

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. SEE AIR BAG RESTRAINT SYSTEMS ARTICLE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect the negative battery cable.
  2. Remove the driver airbag. See AIR BAG RESTRAINT SYSTEMS article.
  3. Disconnect the horn switch harness connector (1).

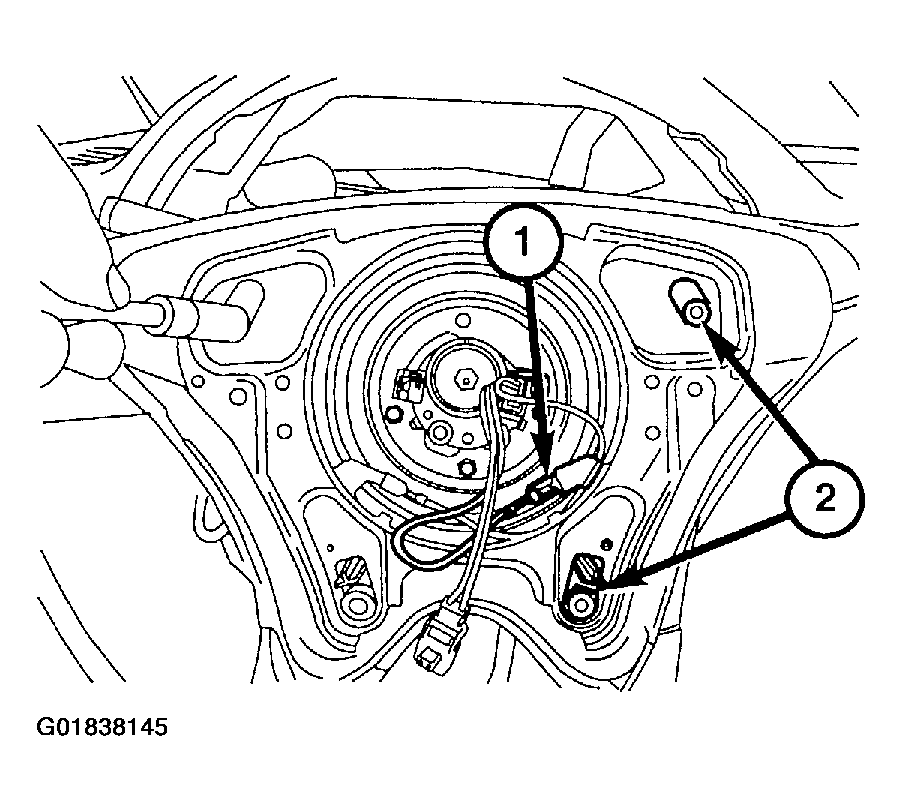

    Fig 1: Disconnecting Horn Switch
    G01838145Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the horn switch retaining nuts (2), and remove the horn switch from the steering wheel.
