Horn Relay: Description

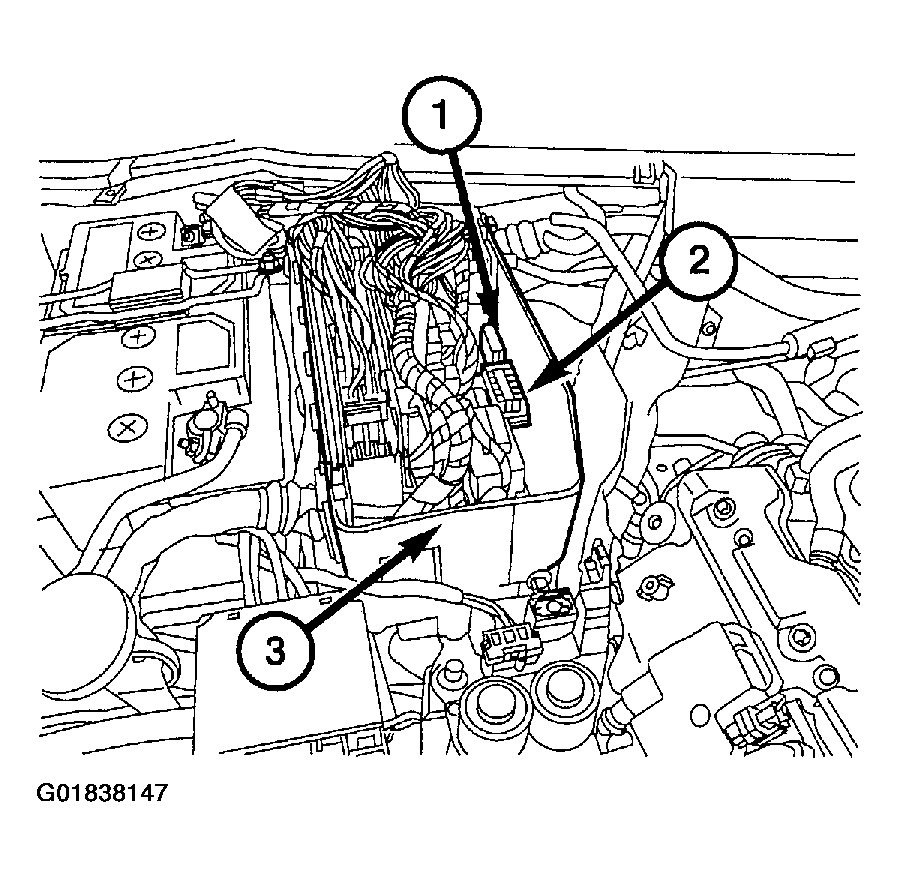

The horn relay is housed within the relay control module (1) located inside the control module box (3) in the passenger side of the engine compartment. The relay control module also contains the fuse (2) for the horn relay circuitry. The relay control module cannot be adjusted or repaired. If faulty or damaged, the entire module must be replaced as an assembly.
