Left Rear Speaker Connector End View

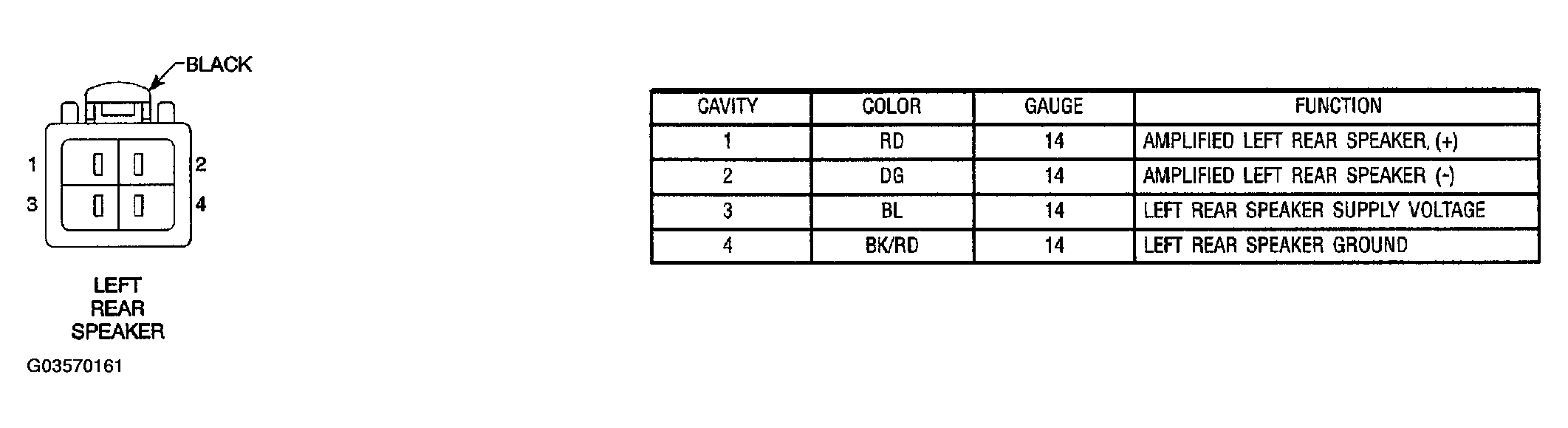

Fig 1: Left Rear Speaker Connector End View

G03570161

Courtesy of DAIMLERCHRYSLER CORP.
