Left Front Power Window Motor Connector End View

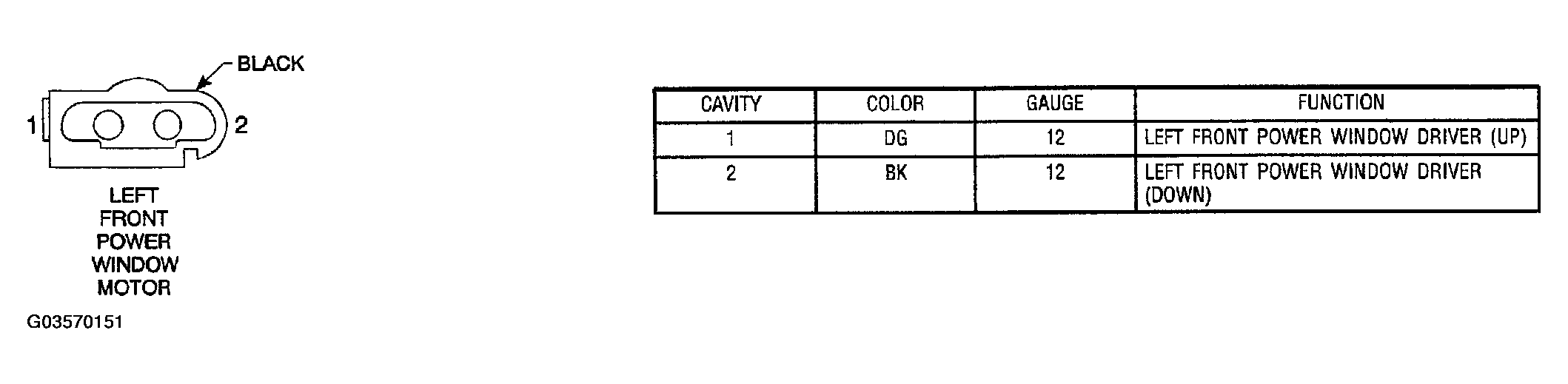

Fig 1: Left Front Power Window Motor Connector End View

G03570151

Courtesy of DAIMLERCHRYSLER CORP.
