Blower Motor Connector End View

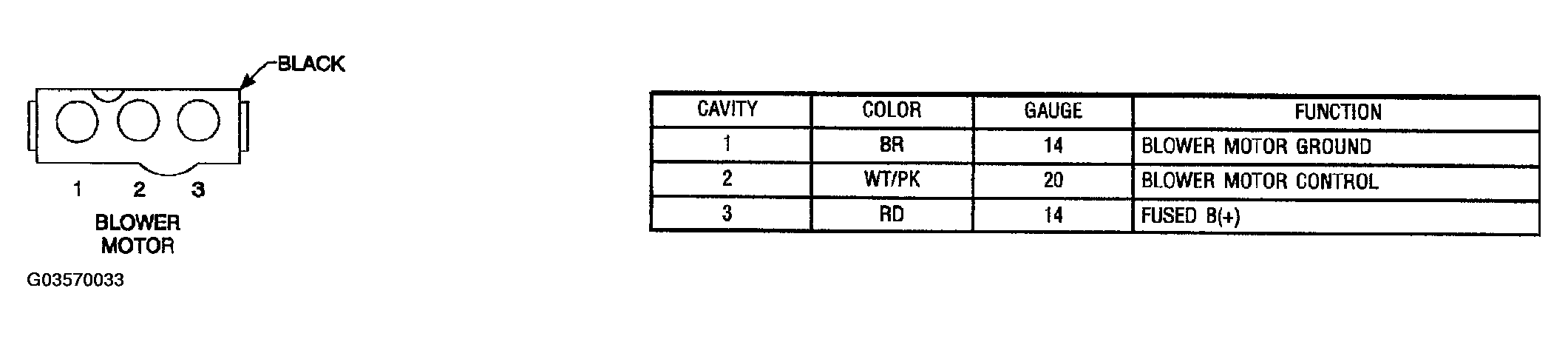

Fig 1: Blower Motor Connector End View

G03570033

Courtesy of DAIMLERCHRYSLER CORP.
