Schematics And Diagrams

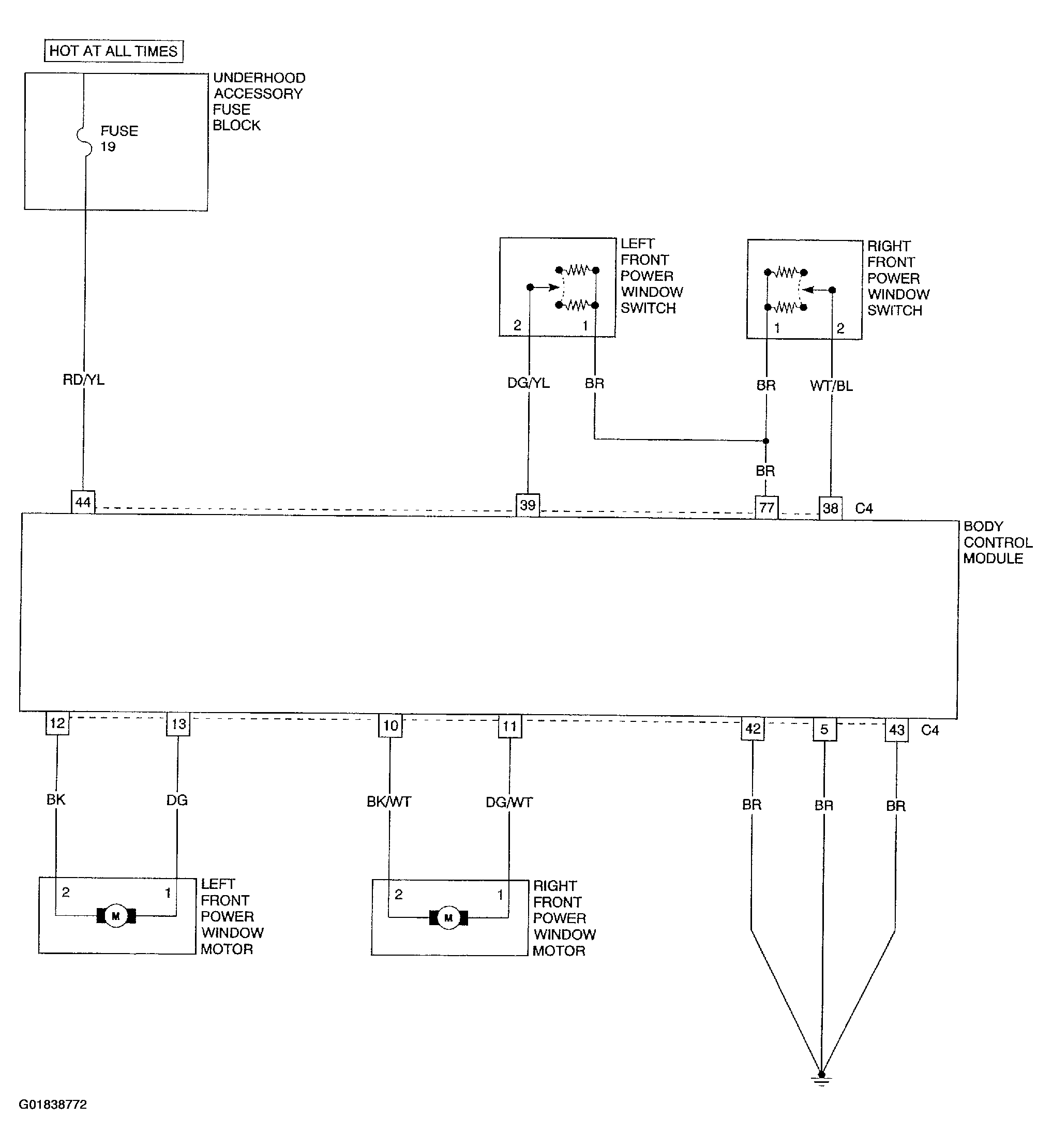

Fig 1: Identifying Power Windows Circuit Diagram

G01838772

Courtesy of DAIMLERCHRYSLER CORP.
