3. Measure Right Front Power Window Switch Ground Circuit Resistance

With the ignition off.

Disconnect the Right Front Power Window Switch harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the Right Front Power Window Switch Ground circuit from the Right Front Power Window Switch harness connector to the BCM harness connector.

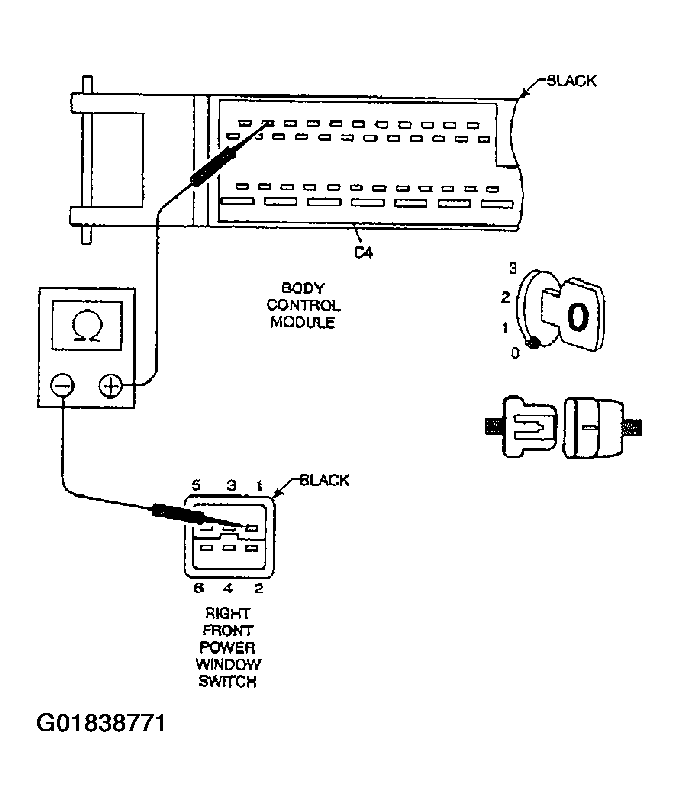

Fig 1: Measuring Right Front Power Window Switch Ground Circuit Resistance

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

Yes >> Replace the Body Control Module. See ELECTRONIC CONTROL MODULES article.
See BODY VERIFICATION TEST .
No >> Repair the Right Front Power Window Switch ground circuit for an open.
See BODY VERIFICATION TEST .
