Circuit Diagram & Connector Identification

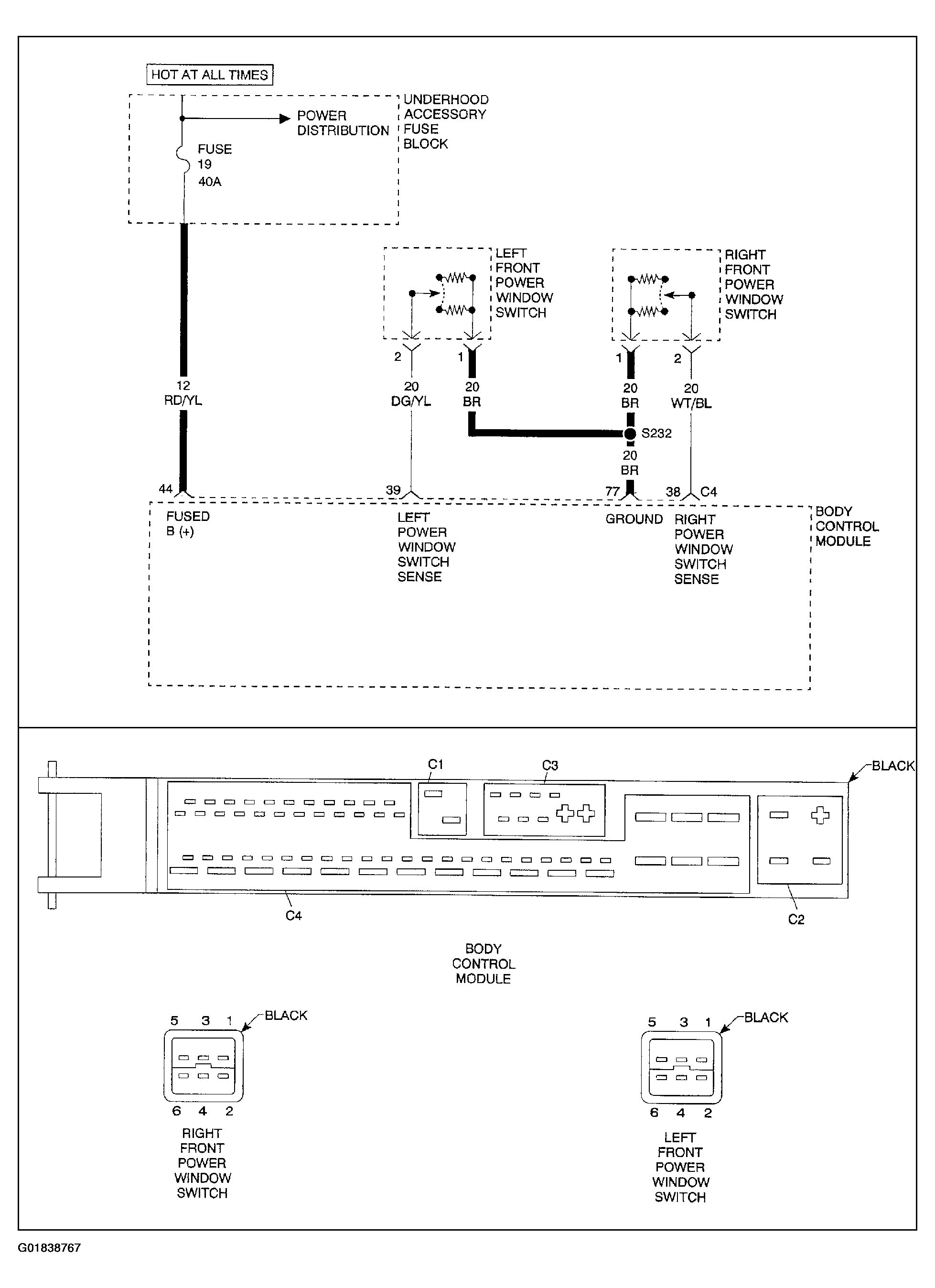

Fig 1: Identifying Both Power Windows Inoperative Circuit Diagram & Connector Identification

G01838767

Courtesy of DAIMLERCHRYSLER CORP.
