Anti-Theft Tow Sensor: Removal

  1. Remove the right side trunk inner trim panel.
  2. Remove the bolt (1) from the anti-theft tow sensor bracket.

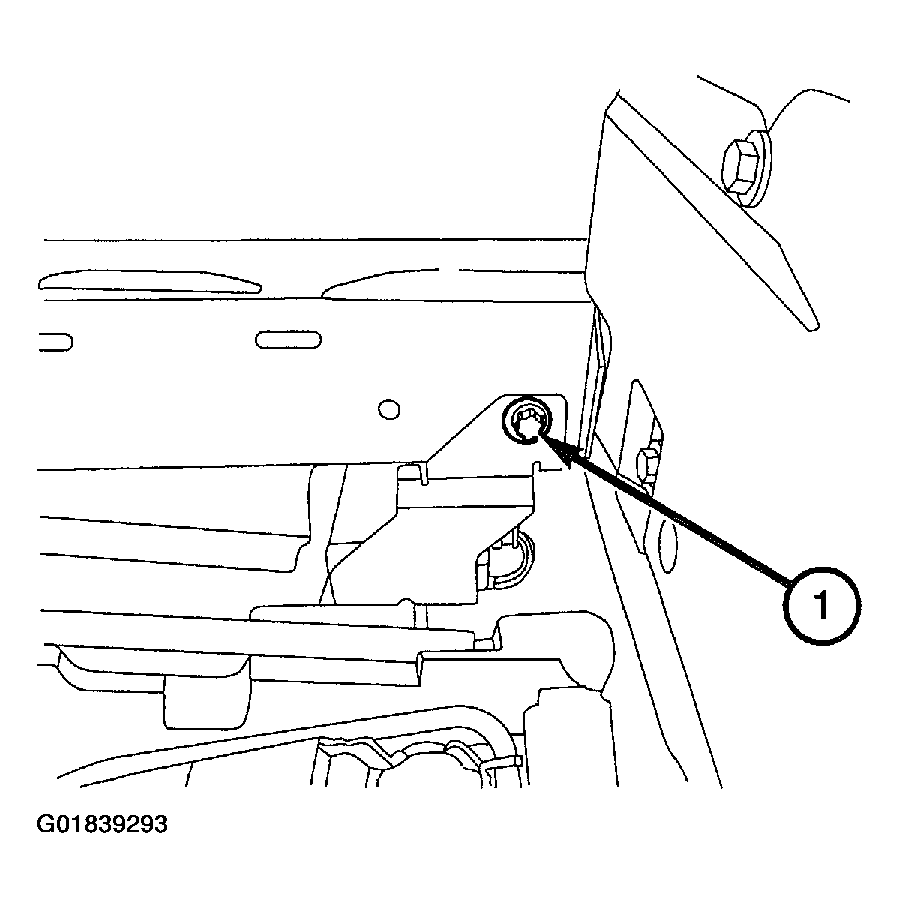

    Fig 1: Removing Bolt From Anti-Theft Tow Sensor Bracket
    G01839293Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the anti-theft tow sensor electrical connector (1).

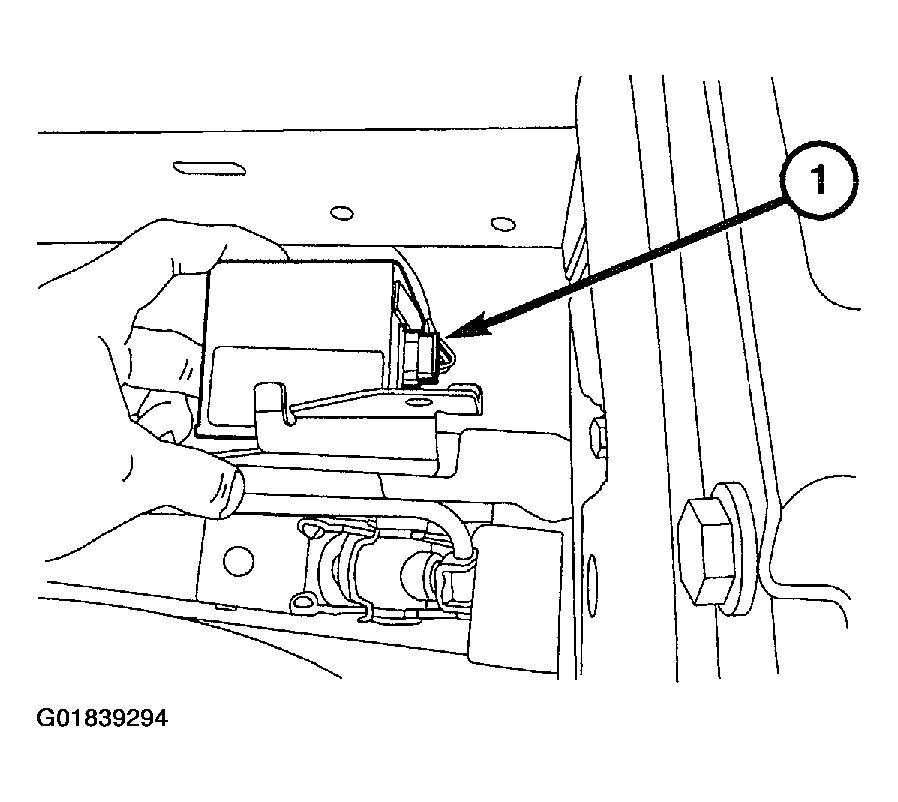

    Fig 2: Disconnecting Anti-Theft Tow Sensor Electrical Connector
    G01839294Courtesy of DAIMLERCHRYSLER CORP.
