Cruise Control Systems: Switch: Installation

  1. Connect the wiring to the column.
  2. Connect the electrical connectors on the steering column.
  3. Install the screw (1) attaching the speed control switch to the multifunction switch.

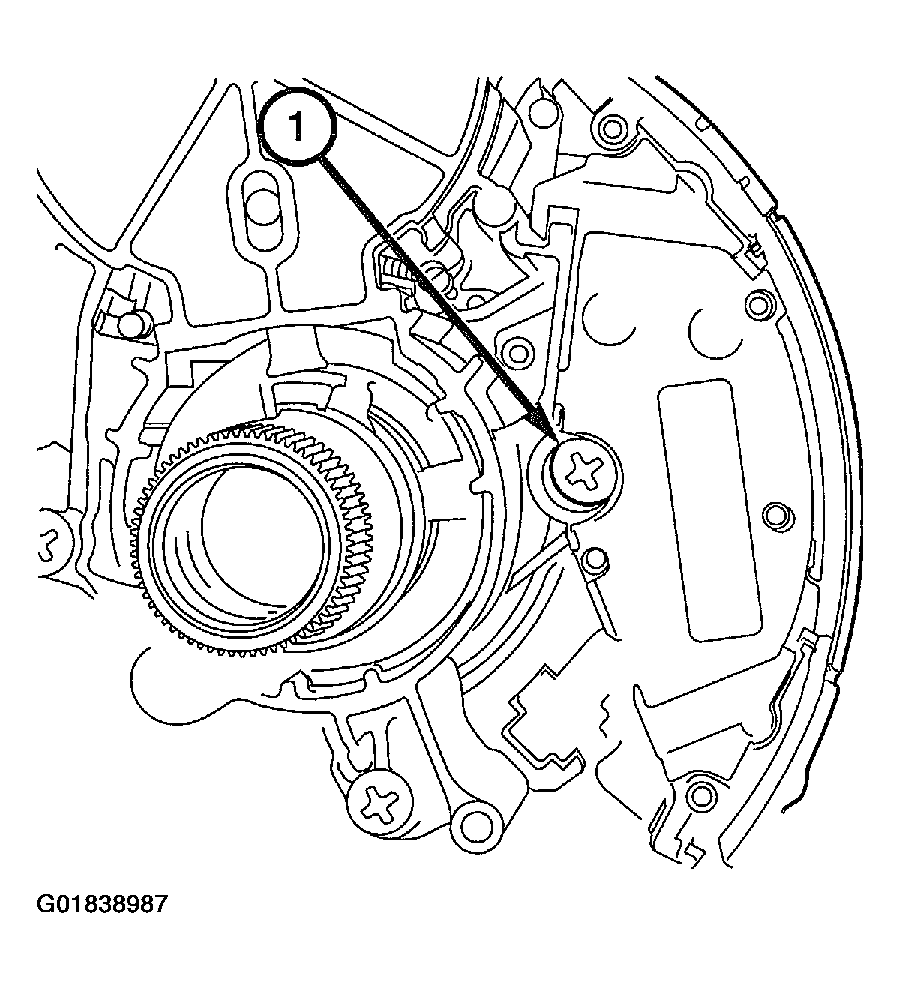

    Fig 1: Installing Switch
    G01838987Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the lower instrument panel. See BODY article.
  5. Install the clockspring. See AIR BAG RESTRAINT SYSTEMS article.
  6. Install the steering wheel. See AIR BAG RESTRAINT SYSTEMS article.
  7. Connect the negative battery cable.
