Transmission Solenoid Assembly Connector End View

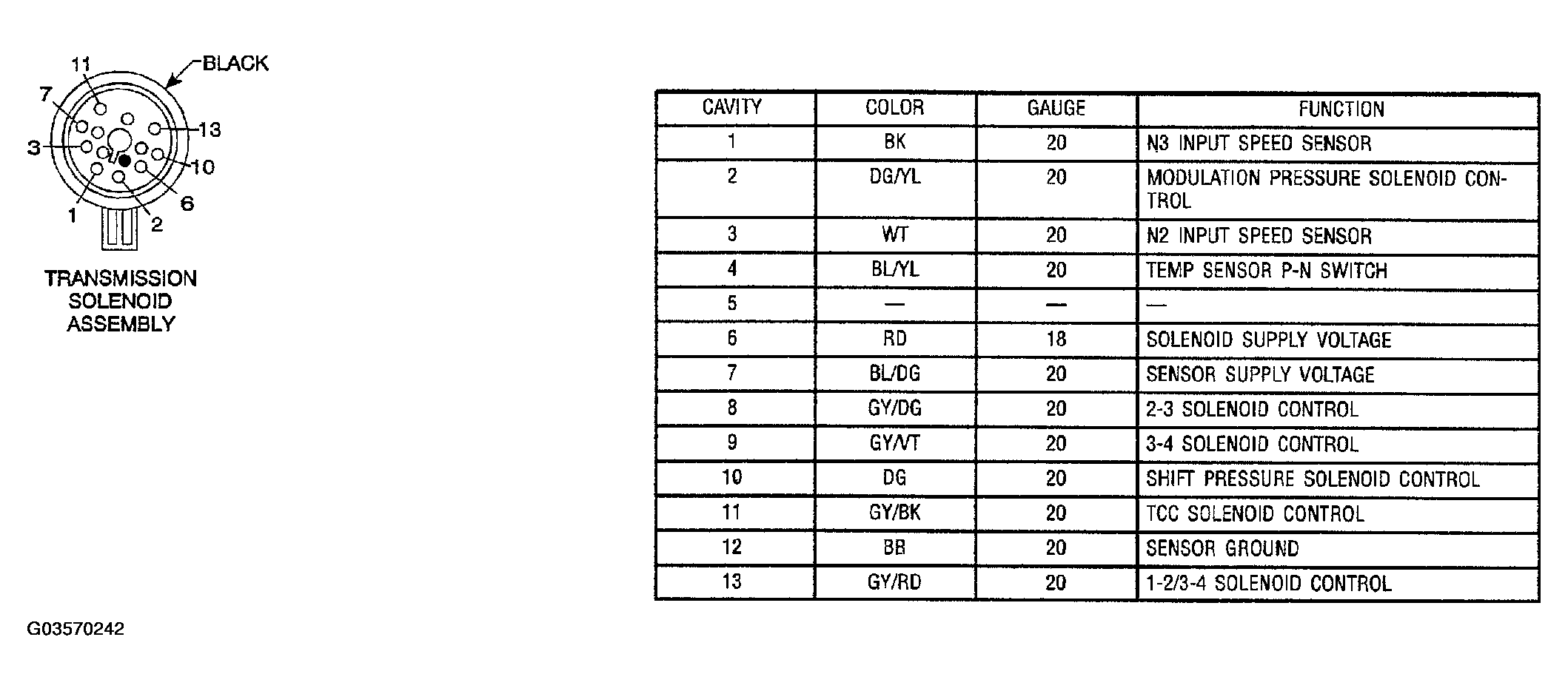

Fig 1: Transmission Solenoid Assembly Connector End View

G03570242

Courtesy of DAIMLERCHRYSLER CORP.
