Transmission Control Module Connector End View (C2)

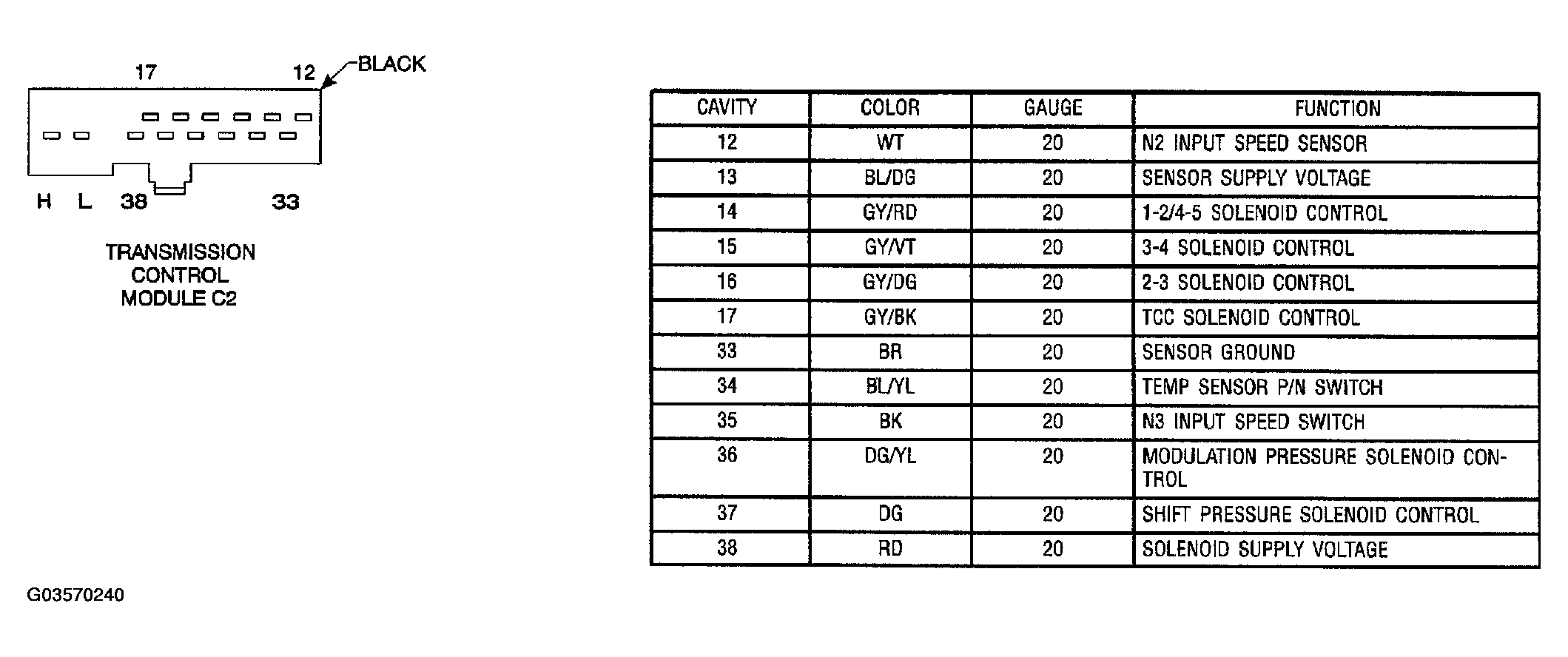

Fig 1: Transmission Control Module Connector End View (C2)

G03570240

Courtesy of DAIMLERCHRYSLER CORP.
