Illumination Control Module Connector End View (B)

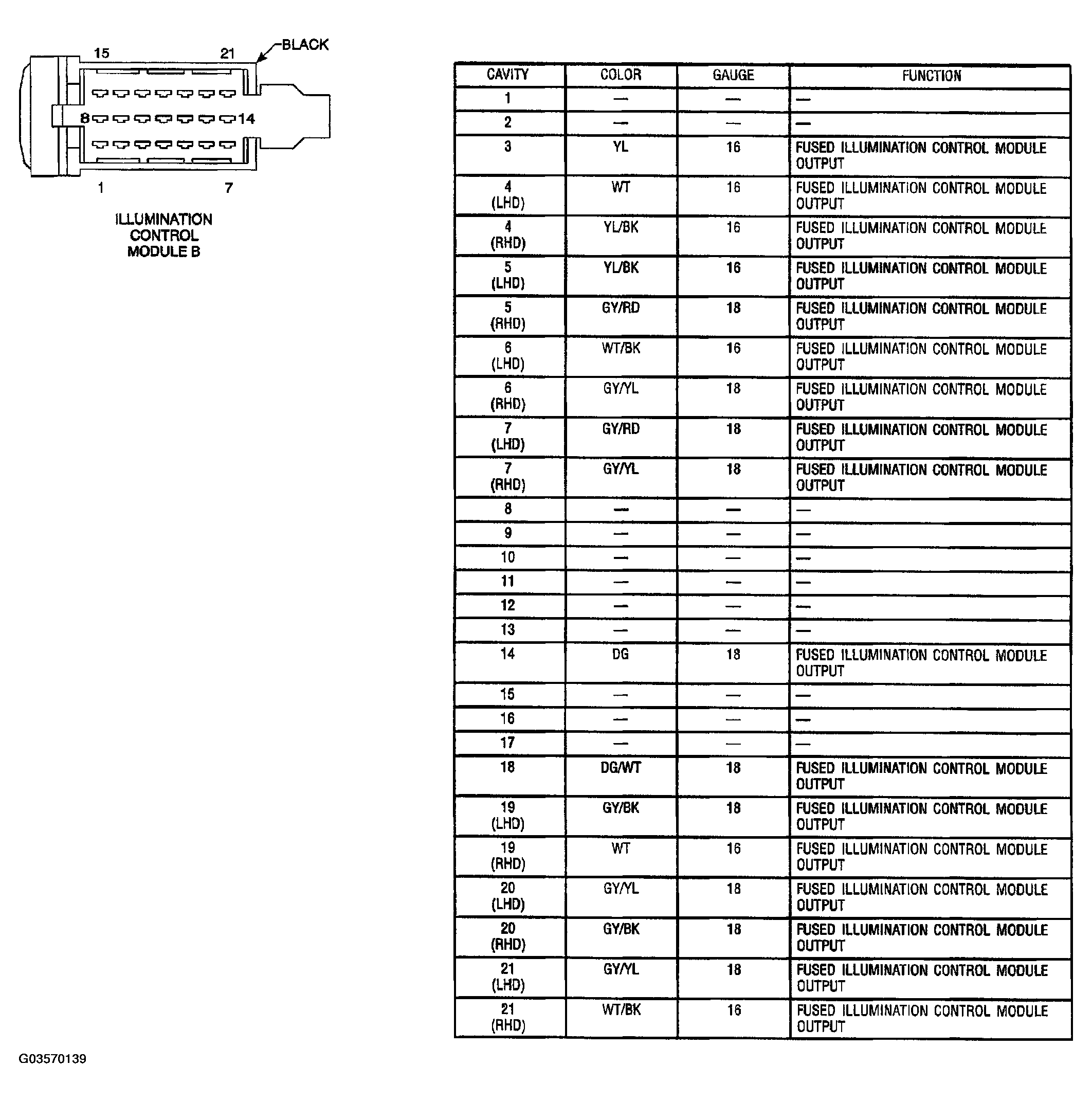

Fig 1: Illumination Control Module Connector End View (B)

G03570139

Courtesy of DAIMLERCHRYSLER CORP.
