Sentry Key Remote Entry Module Connector End View (C1)

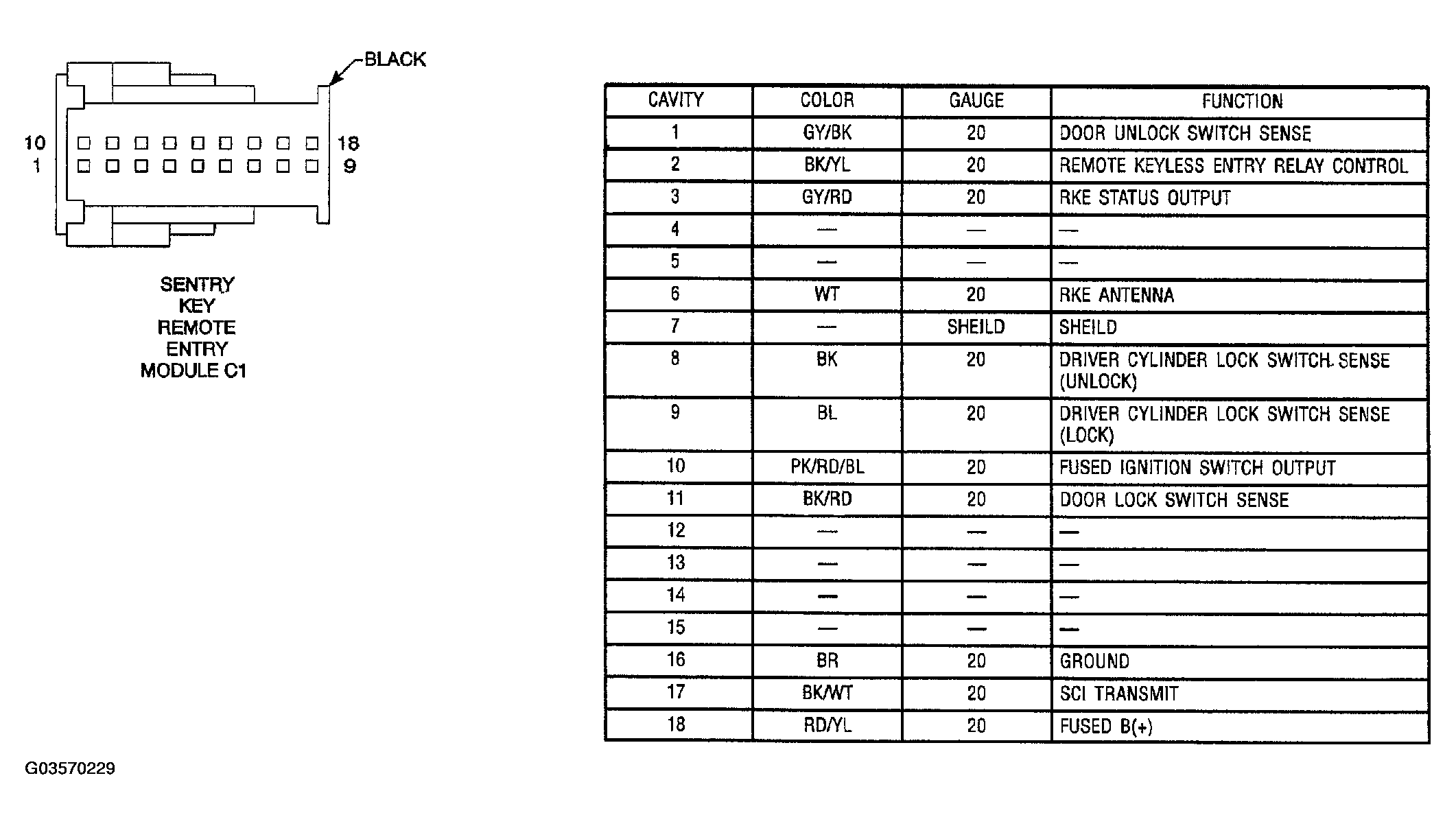

Fig 1: Sentry Key Remote Entry Module Connector End View (C1)

G03570229

Courtesy of DAIMLERCHRYSLER CORP.
