Powertrain Control Module Connector End View (C5)

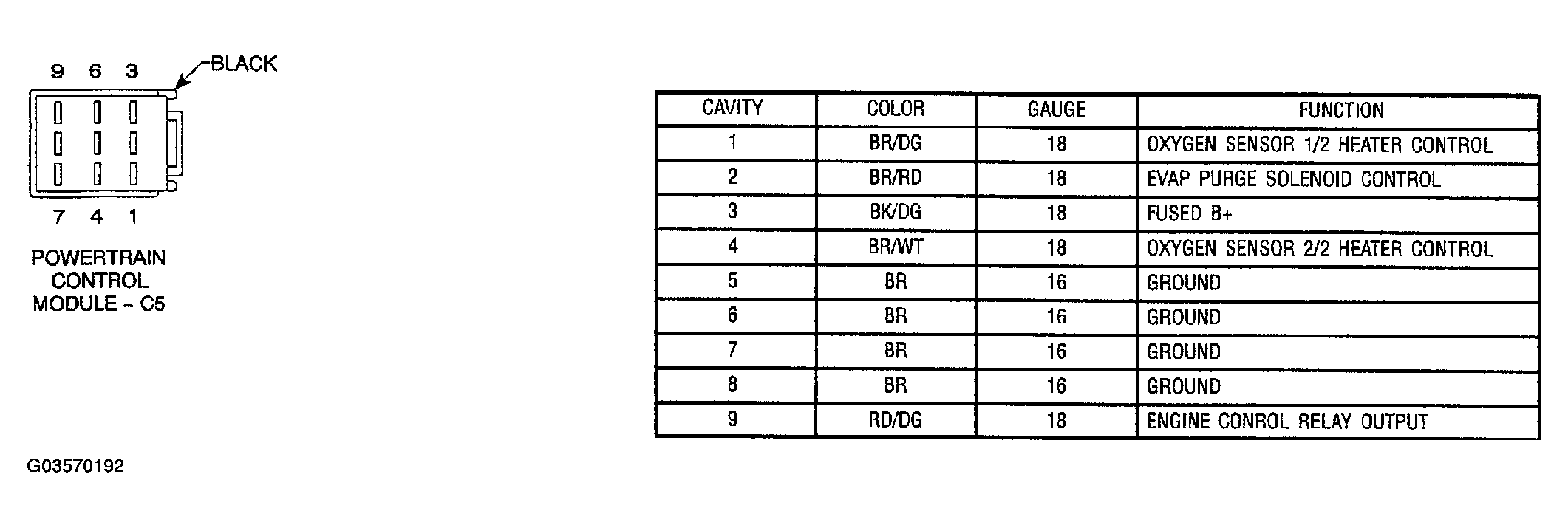

Fig 1: Powertrain Control Module Connector End View (C5)

G03570192

Courtesy of DAIMLERCHRYSLER CORP.
