Illumination Control Module Connector End View (A)

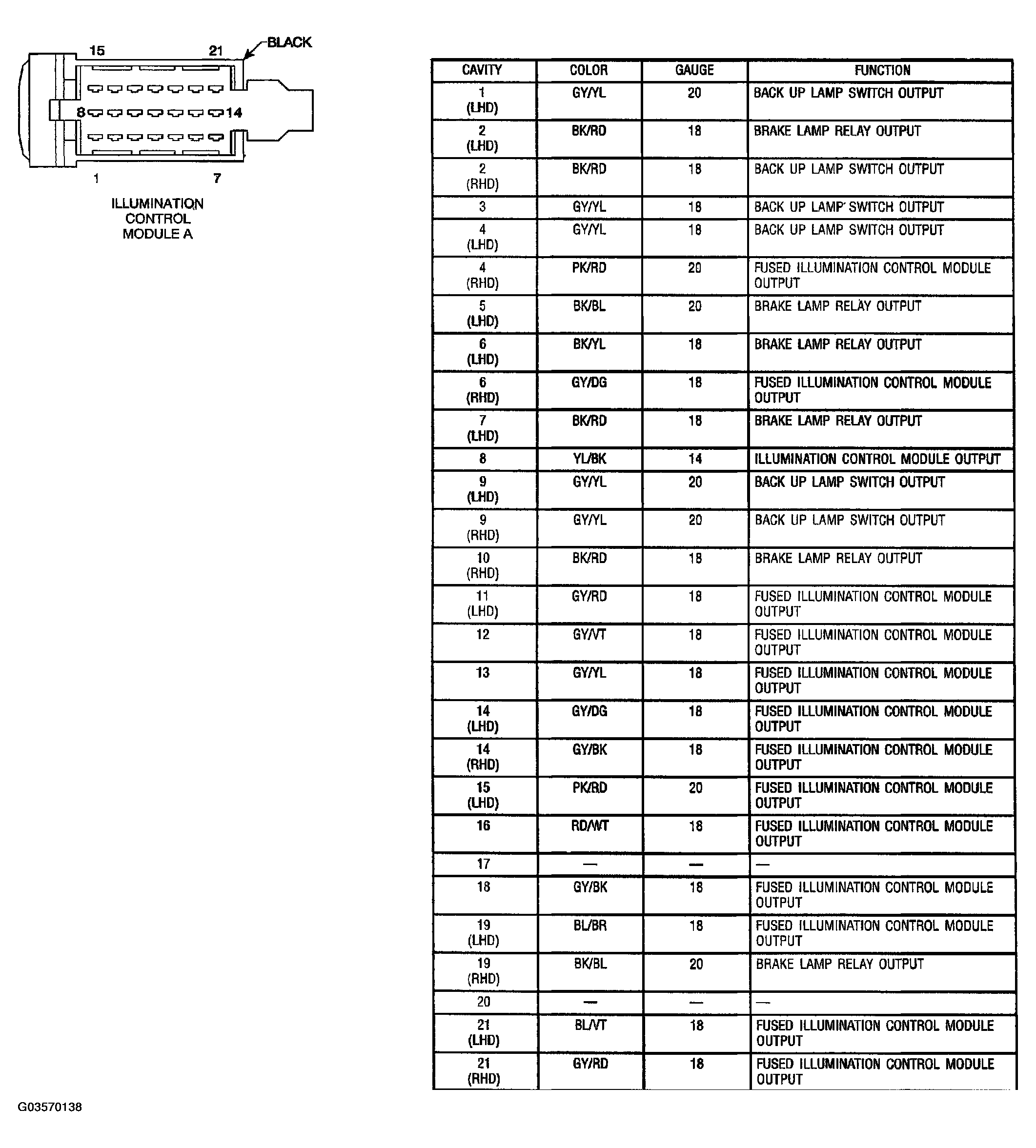

Fig 1: Illumination Control Module Connector End View (A)

G03570138

Courtesy of DAIMLERCHRYSLER CORP.
