Body Control Module Connector End View (C2)

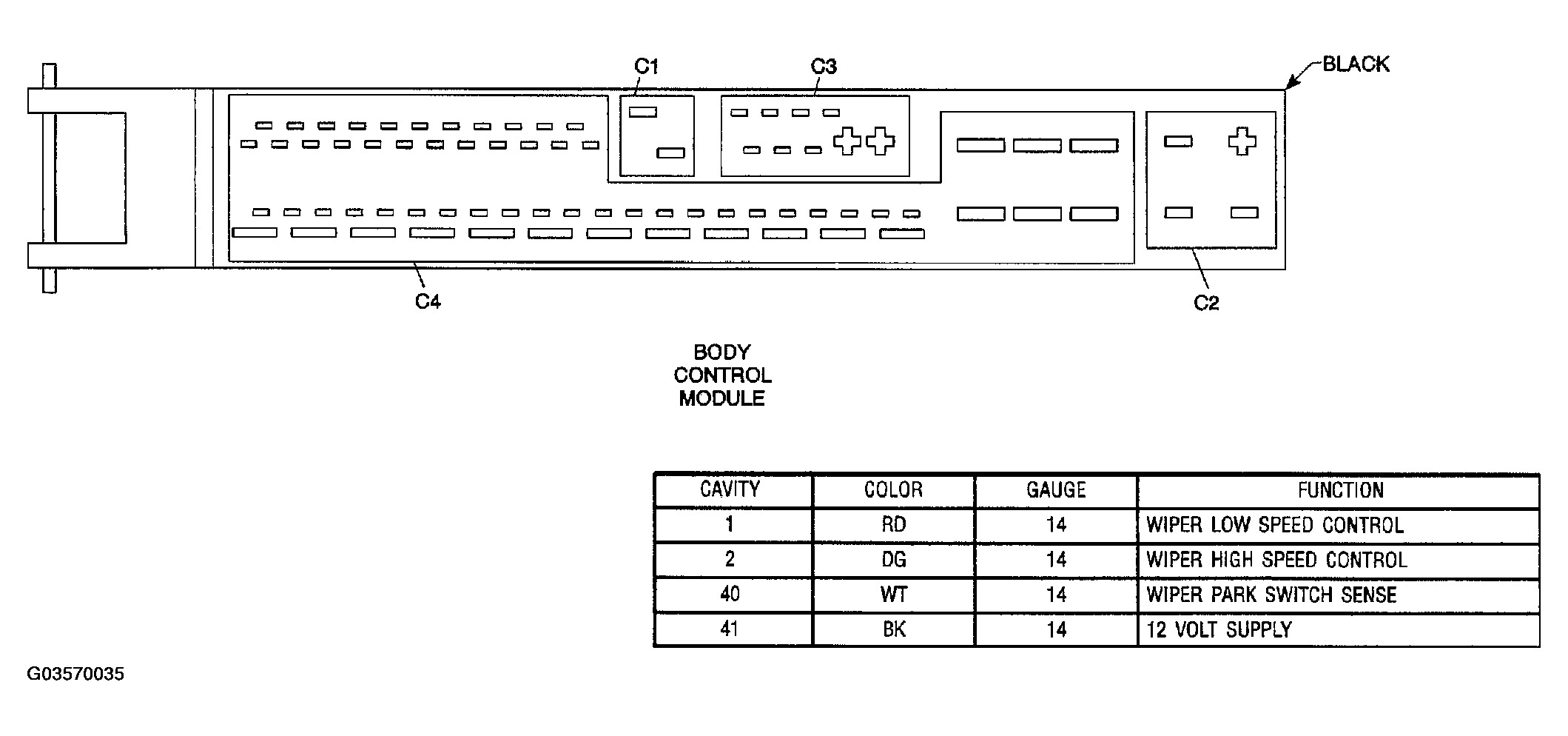

Fig 1: Body Control Module Connector End View (C2)

G03570035

Courtesy of DAIMLERCHRYSLER CORP.
