A/C Heater Control Module Connector End View

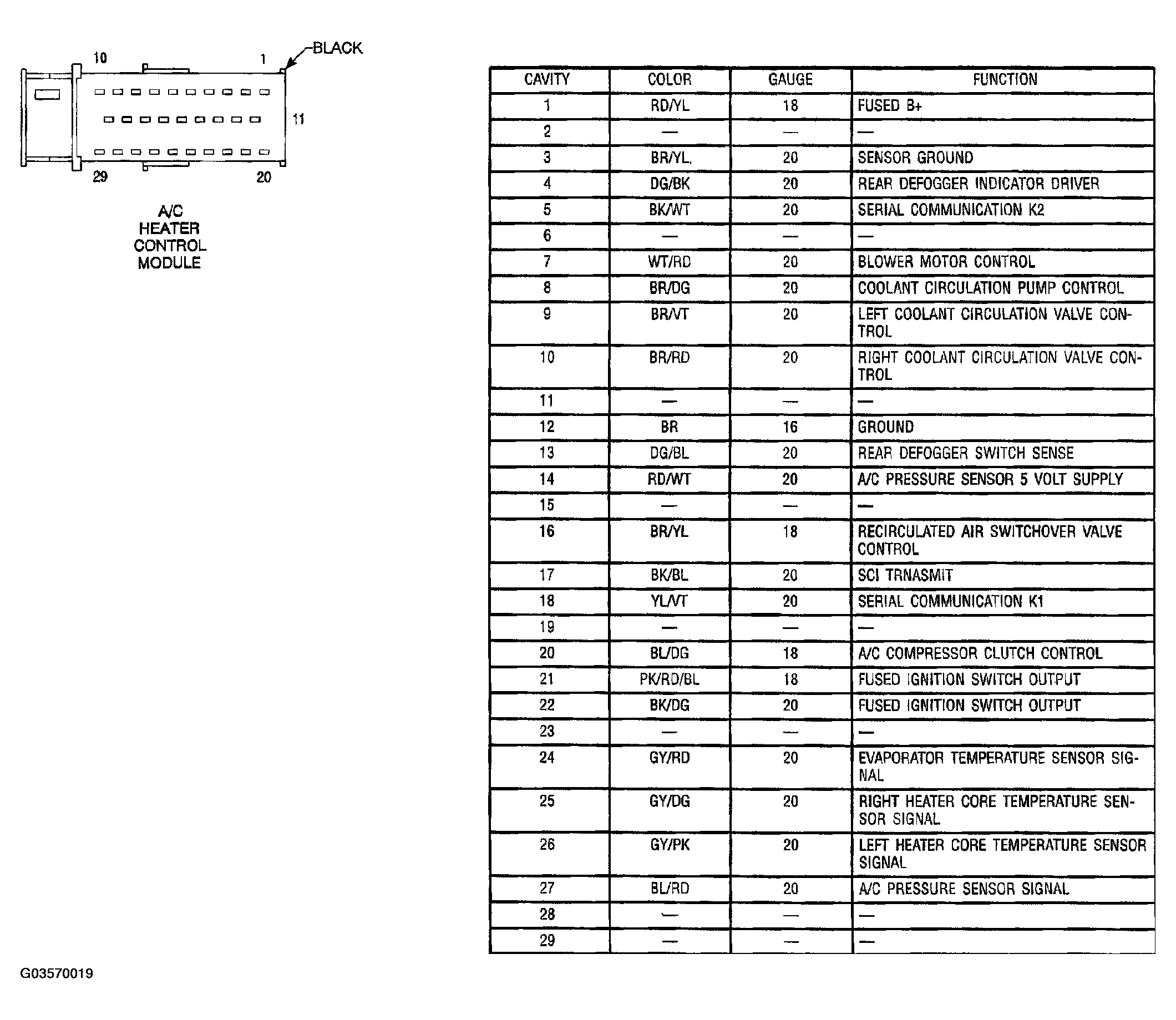

Fig 1: A/C Heater Control Module Connector End View

G03570019

Courtesy of DAIMLERCHRYSLER CORP.
