ESP Off Switch Connector End View

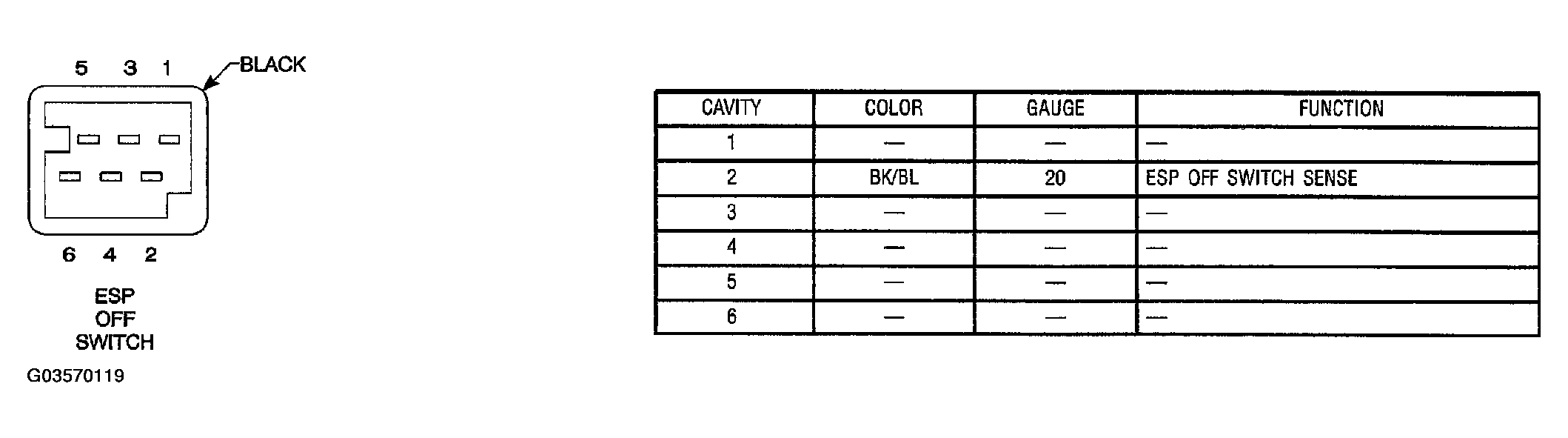

Fig 1: ESP Off Switch Connector End View
G03570119Courtesy of DAIMLERCHRYSLER CORP.
