2. Measure The Steering Angle Sensor Signal Circuit Resistance

Turn the ignition off.

Disconnect the CAB harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the Steering Angle Sensor Signal circuit from the CAB harness connector to the Steering Angle Sensor harness connector.

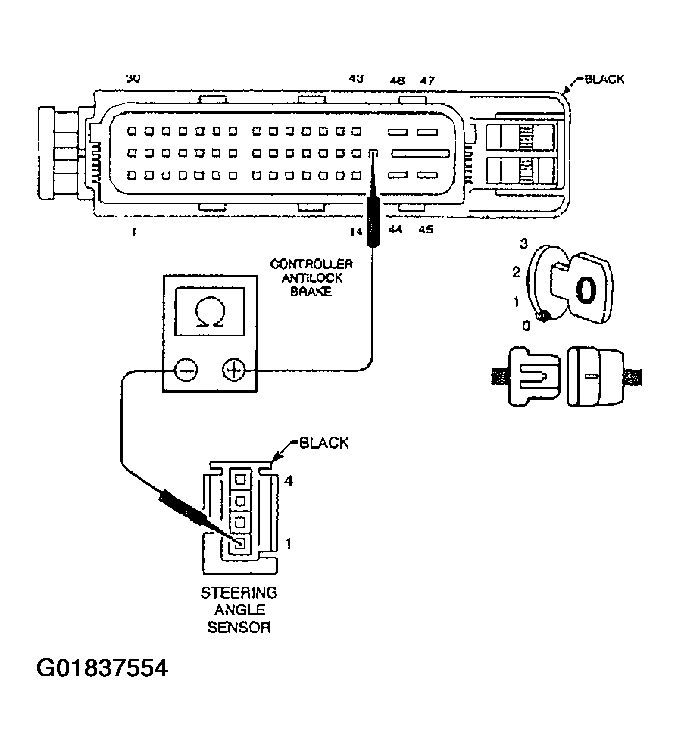

Fig 1: Measuring Steering Angle Sensor Signal Circuit Resistance
G01837554Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 3
  2. No  >> Repair the Steering Angle Sensor Signal circuit for an open.

    Perform ABS VERIFICATION TEST .
