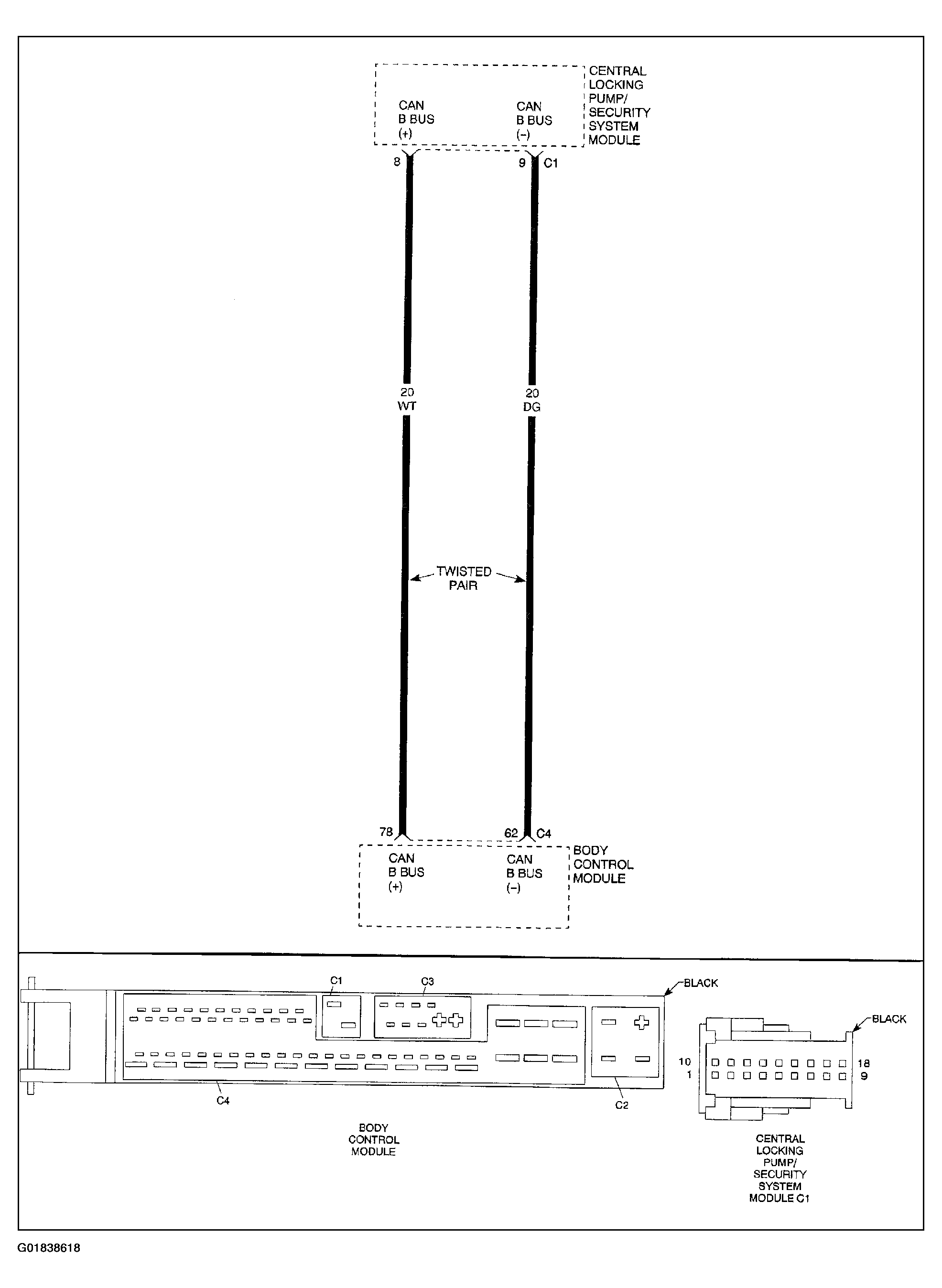

Home >> Chrysler >> 2004 >> Crossfire Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Power Door Lock System >> Power Locks - Electrical Diagnostics >> Diagnosis And Testing >> No Communication With Body Control Module And Central Locking Pump/Security System Module >> Circuit Diagram & Connector Identification
