Windshield Washer System

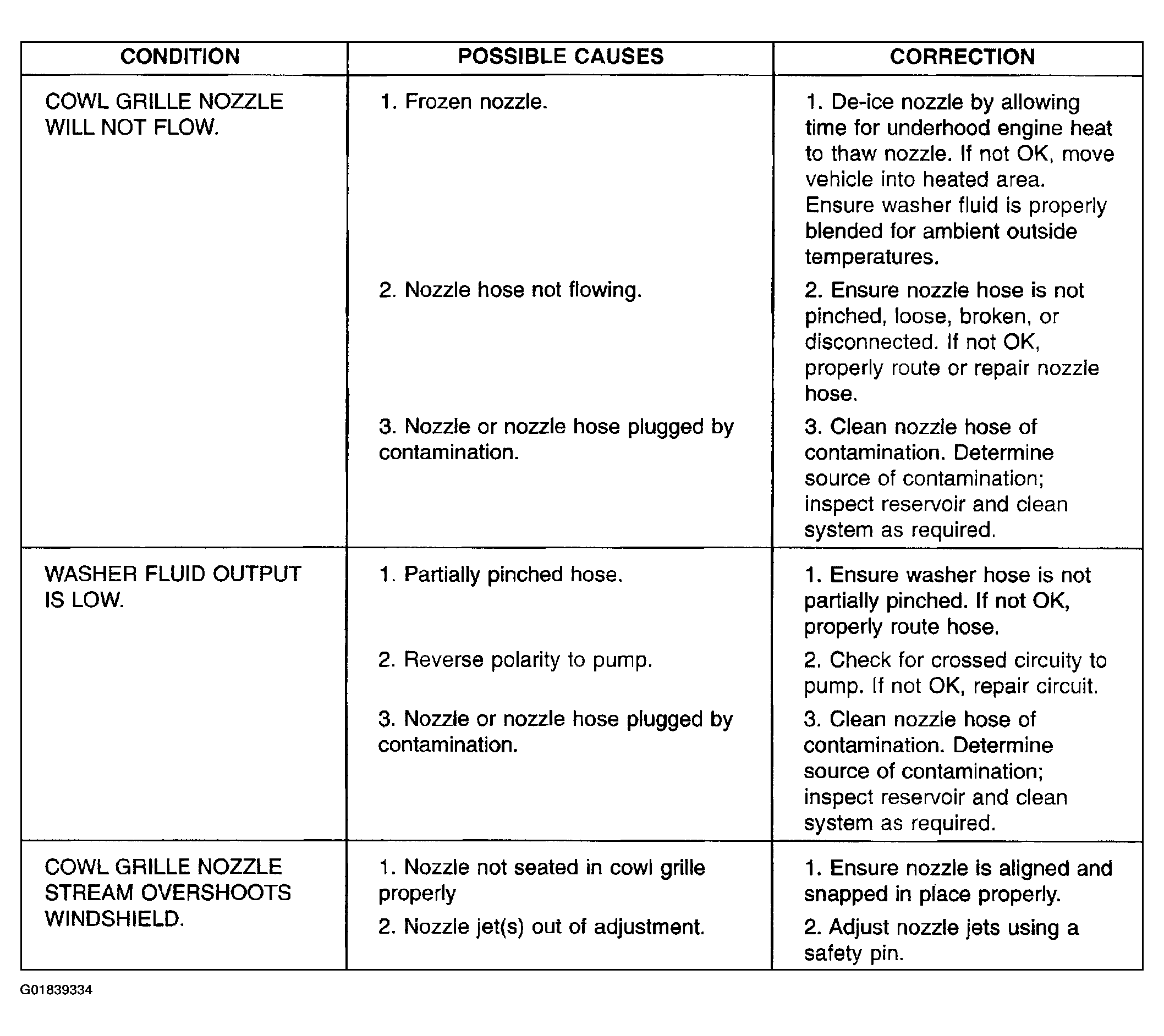

Fig 1: Diagnosing Windshield Washer System
G01839334Courtesy of DAIMLERCHRYSLER CORP.
