Wiper Module: Removal

NOTE: If possible, cycle the wiper system to position the wiper arms and linkage in the park position before removal is attempted.
  1. Disconnect the negative battery cable.
  2. Remove the wiper arms. See WIPER ARMS .
  3. Remove the cowl grille. See BODY article.
  4. Remove the control module box cover (1).

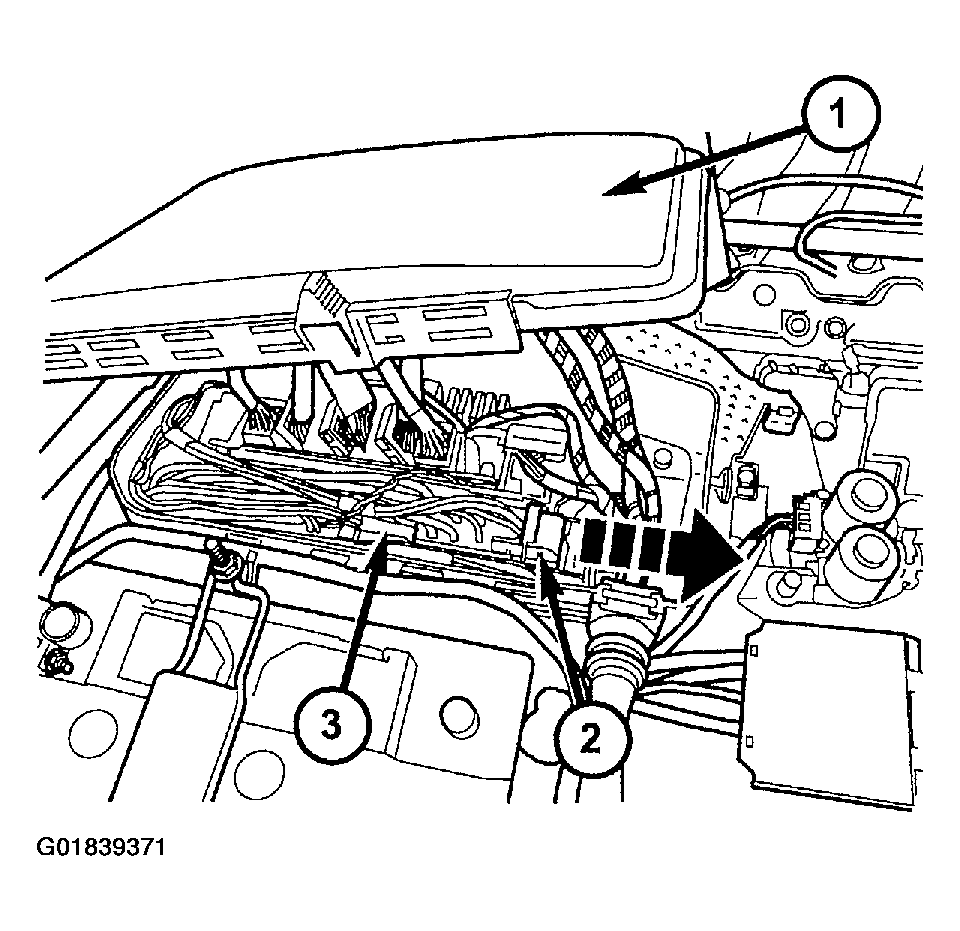

    Fig 1: Removing Control Module Box Cover
    G01839371Courtesy of DAIMLERCHRYSLER CORP.
  5. Unlock and disconnect the wiper motor harness connector (2) from the Body Control Module (BCM) (3).
  6. Remove the wiper motor harness rubber grommet (1) from the control module box (4).

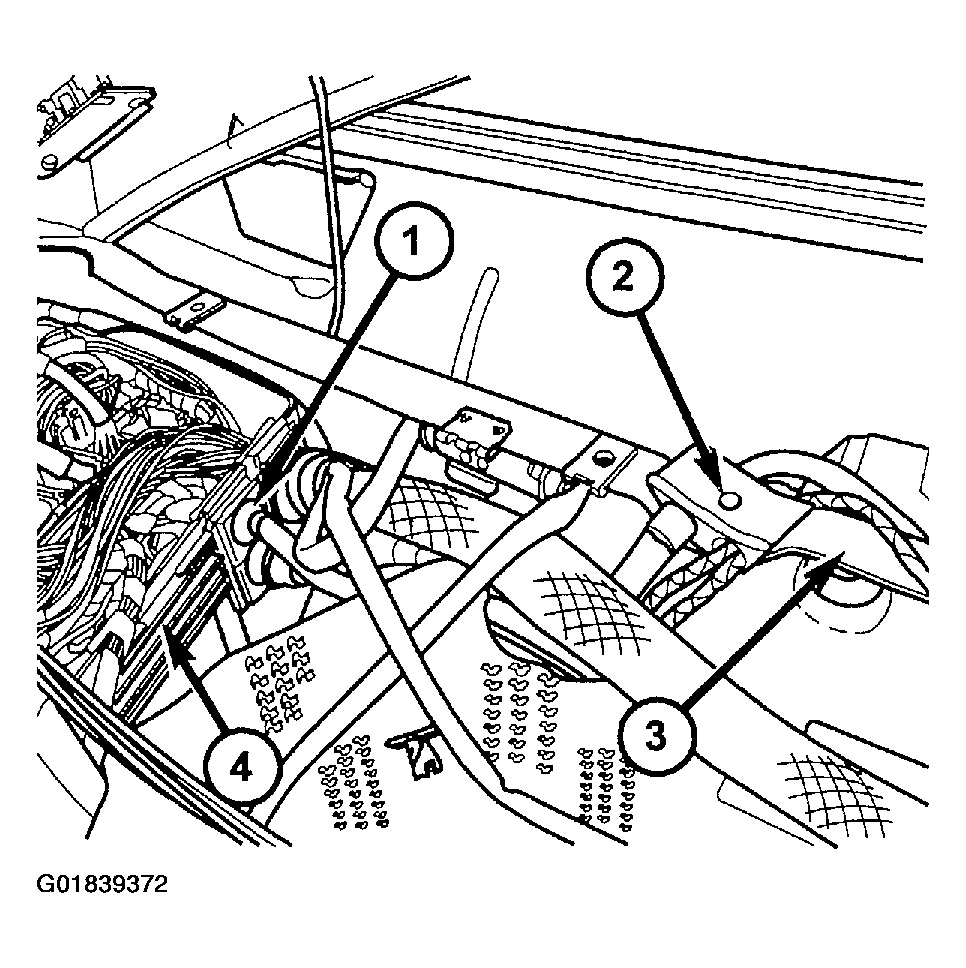

    Fig 2: Removing Wiper Motor Harness Rubber Grommet
    G01839372Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the wiper motor harness rubber grommet (2) from the cowl ledge (3).
  8. Rotate the cowl grille drain (1) counterclockwise, then lift upward and remove from the cowl.

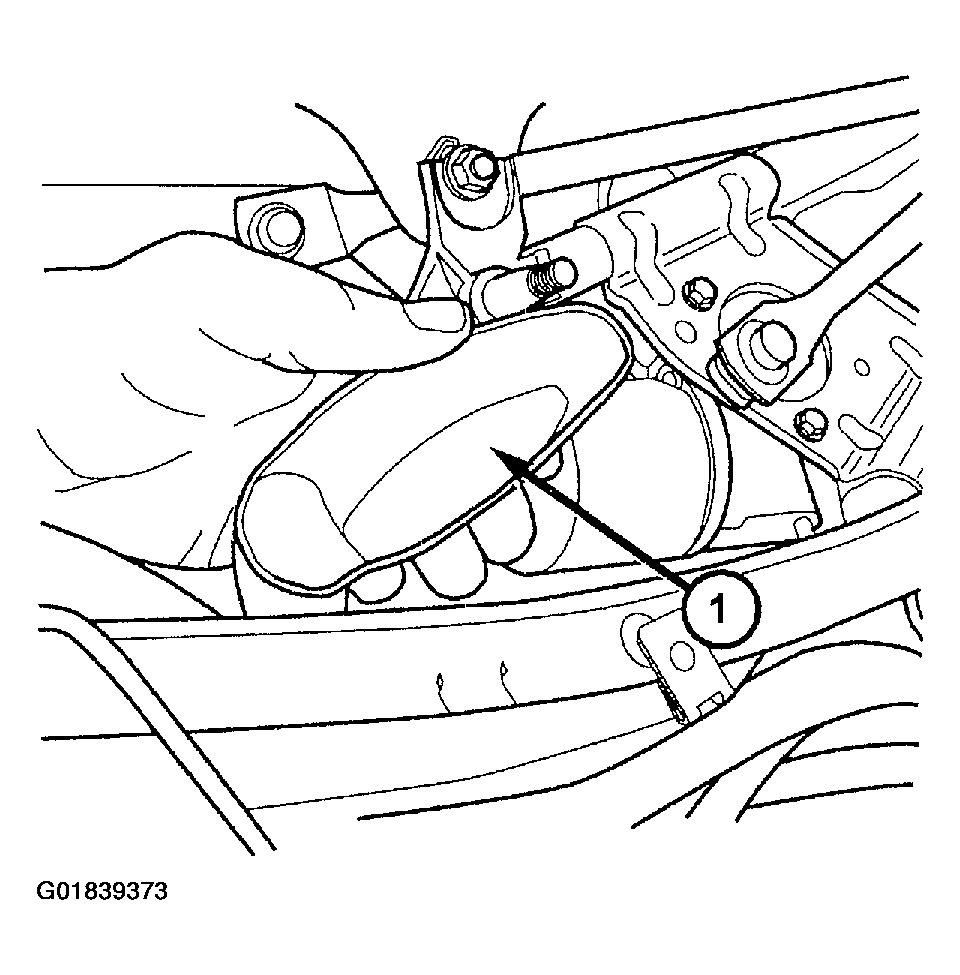

    Fig 3: Removing Cowl Grille Drain
    G01839373Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the lower wiper module attachment bolt (3) under the cowl ledge (2).
  10. Remove the two upper wiper module attachment nuts (1).

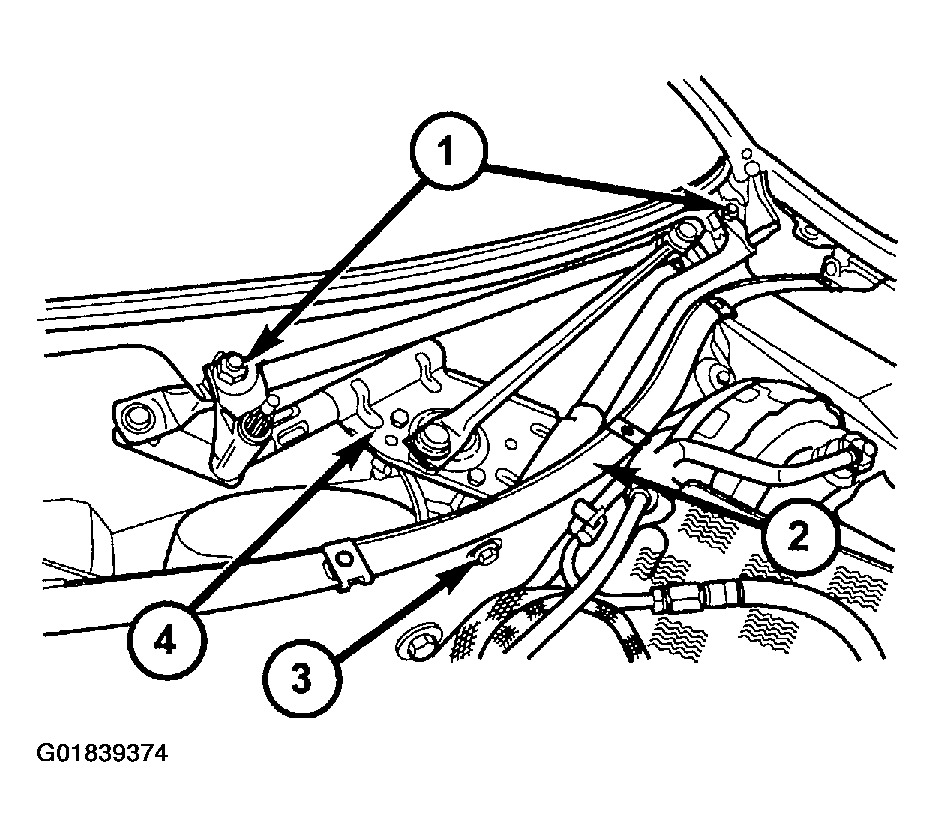

    Fig 4: Removing Lower Wiper Module Attaching Bolt, Upper Attachment Nuts & Wiper Module
    G01839374Courtesy of DAIMLERCHRYSLER CORP.
    11. CAUTION: Do not allow the wiper module to contact the windshield.
  11. Remove the wiper module (4) from the vehicle.
