Wiper Module: Installation

CAUTION: Do not allow the wiper module to contact the windshield.
  1. Align the wiper module into the cowl over the two upper attachment nut mounting studs (1).

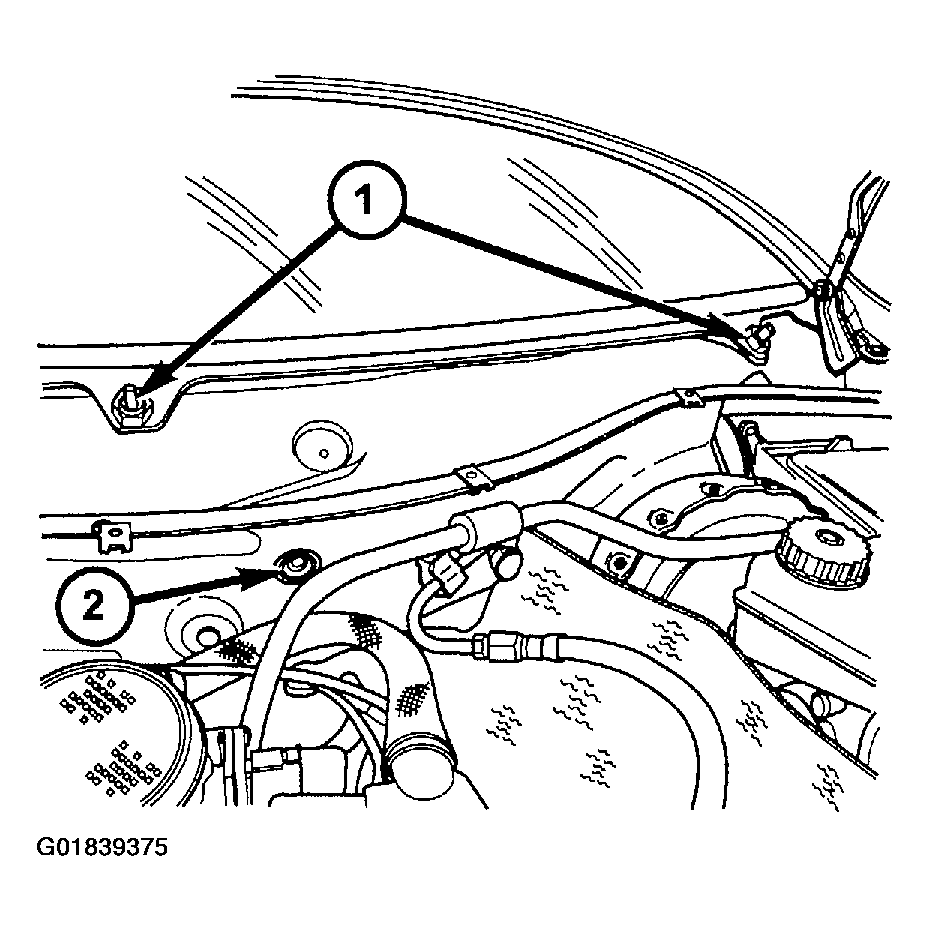

    Fig 1: Aligning Wiper Module
    G01839375Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the two wiper module upper attachment nuts and secure.
  3. Install the lower wiper module attachment bolt through the hole (2) in the cowl and secure.
  4. Install the cowl grille drain (1) into the cowl and rotate clockwise to secure. Ensure the grommet is seated fully.

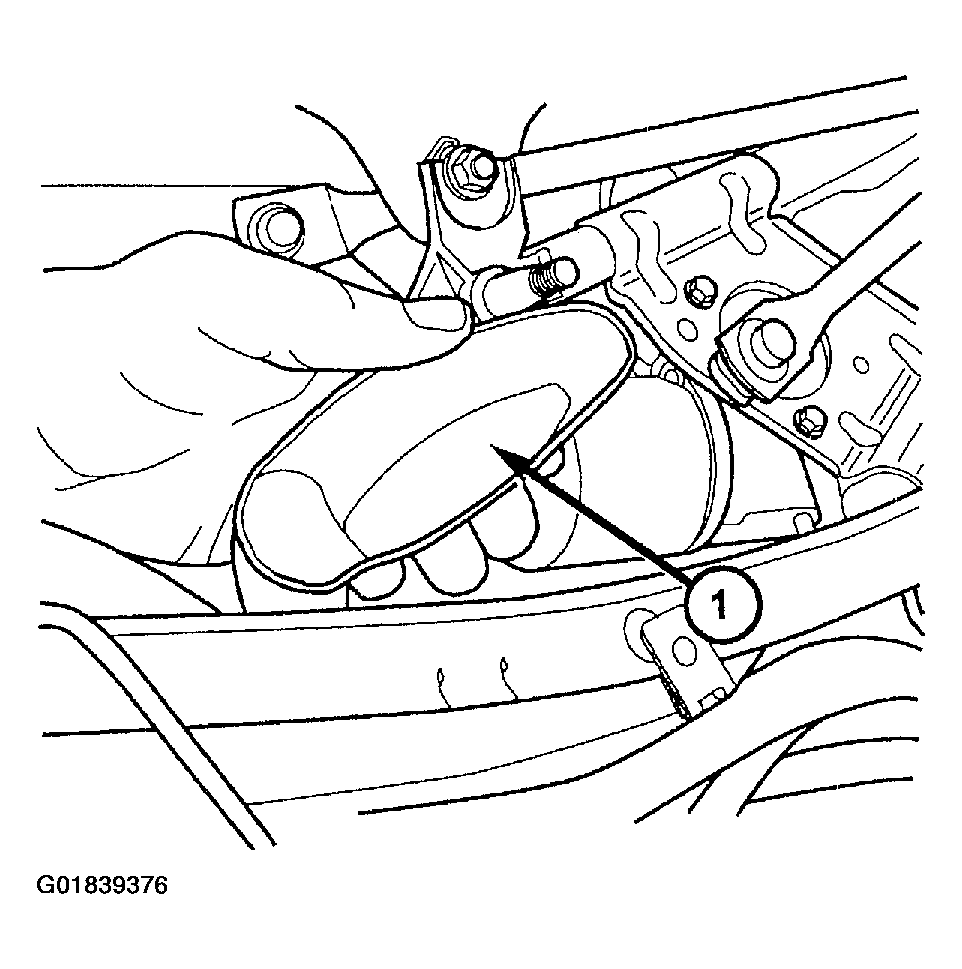

    Fig 2: Installing Cowl Grille Drain
    G01839376Courtesy of DAIMLERCHRYSLER CORP.
    5. NOTE: Ensure that the wiper motor harness and its rubber grommets are seated and routed properly to avoid interference with moving parts.
    Fig 3: Installing Wiper Motor Harness & Rubber Grommets
    G01839377Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the wiper motor harness and rubber grommet (2) into the cowl ledge (3).
  6. Install the wiper motor harness and rubber grommet (1) into the control module box (4).
  7. Connect the wiper motor harness connector (2) to the Body Control Module (BCM) (3) and slide the locking tab fully over the connector (2).

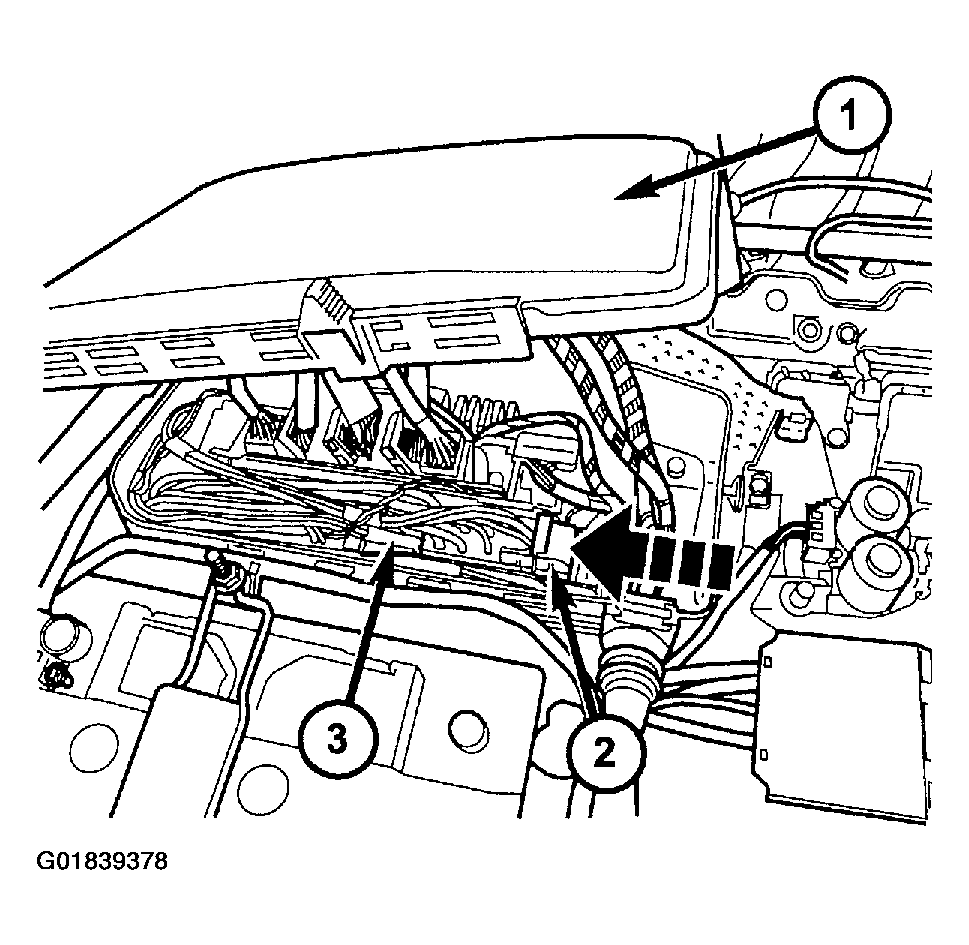

    Fig 4: Connecting Wiper Motor Harness Connector & Installing Control Module Box Cover
    G01839378Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the control module box cover (1).
  9. Install the cowl grille. See BODY article.
  10. Install the wiper arms. See WIPER ARMS .
  11. Connect the negative battery cable.
