Multi-Function Switch: Description

The multifunction switch and control circuitry (3) is concealed below the steering column shrouds and will operate when the ignition switch is turned to the ACC or ON/RUN positions. Fuse 32 in the underhood accessory fuse block protect the circuitry of the wiper system and the vehicle.

Fig 1: Identifying Multi-Function Switch Control Circuitry

Courtesy of DAIMLERCHRYSLER CORP.

The wiper system in addition to HI (1) and LO (2) speeds, has an intermittent delay (3) mode. The wipers will return to the park position when the wiper portion of the switch is rotated to the OFF position. A mist function can be operated by briefly pressing the end of the multifunction switch lever inward.

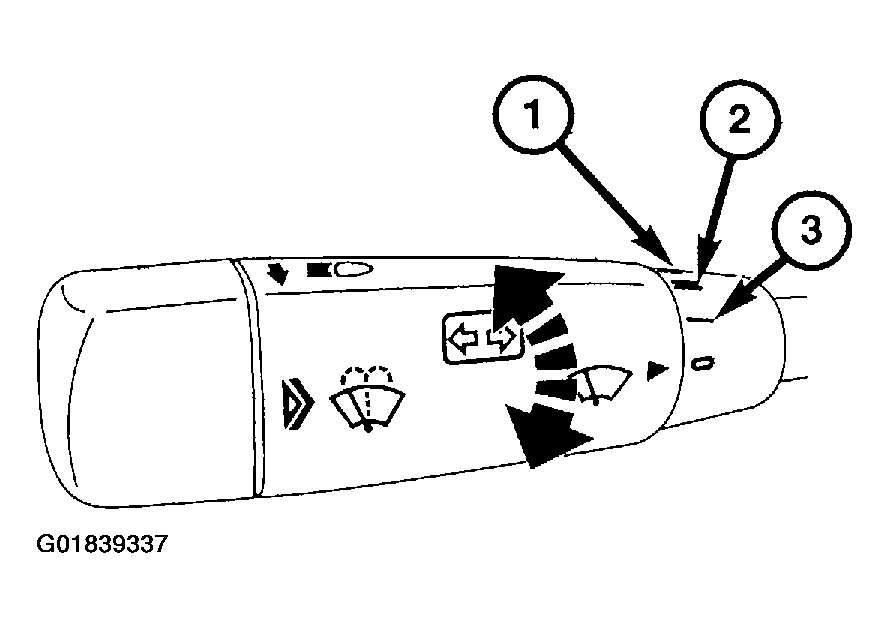

Fig 2: Identifying Wiper/Washer Multi-Function Switch Modes

Courtesy of DAIMLERCHRYSLER CORP.

The multifunction switch cannot be adjusted, or repaired. If faulty, worn, or damaged, the entire unit must be replaced. For complete multifunction switch removal procedures, see EXTERIOR LIGHTS article.
