Data Link Connector: Description

The Data Link Connector (DLC) (1) is located at the lower edge of the instrument panel (3) near the hood release (2). The exposed connector terminals are protected by a plastic cover which flips open if access is needed.

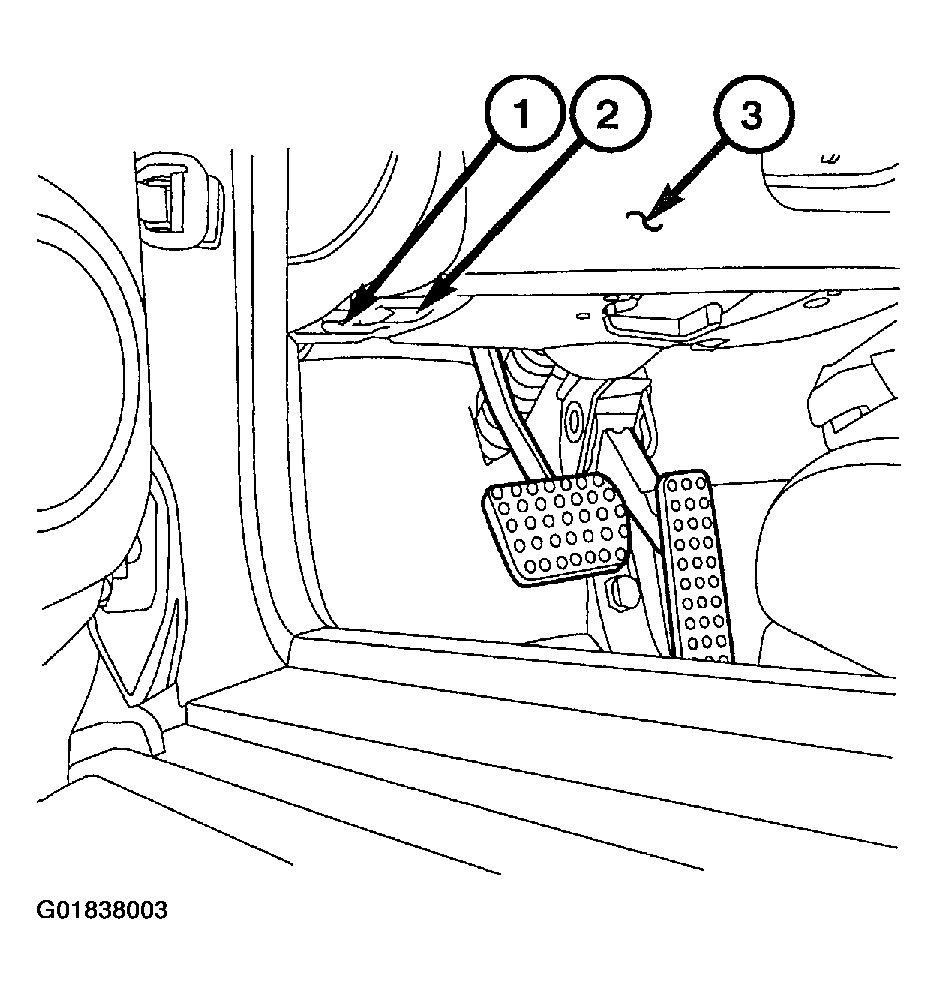

Fig 1: Locating Data Link Connector
G01838003Courtesy of DAIMLERCHRYSLER CORP.
