3. Sci Transmit Circuit Open

With the ignition off.

Measure the resistance of the SCI Transmit circuit from the TCM harness connector to the DLC.

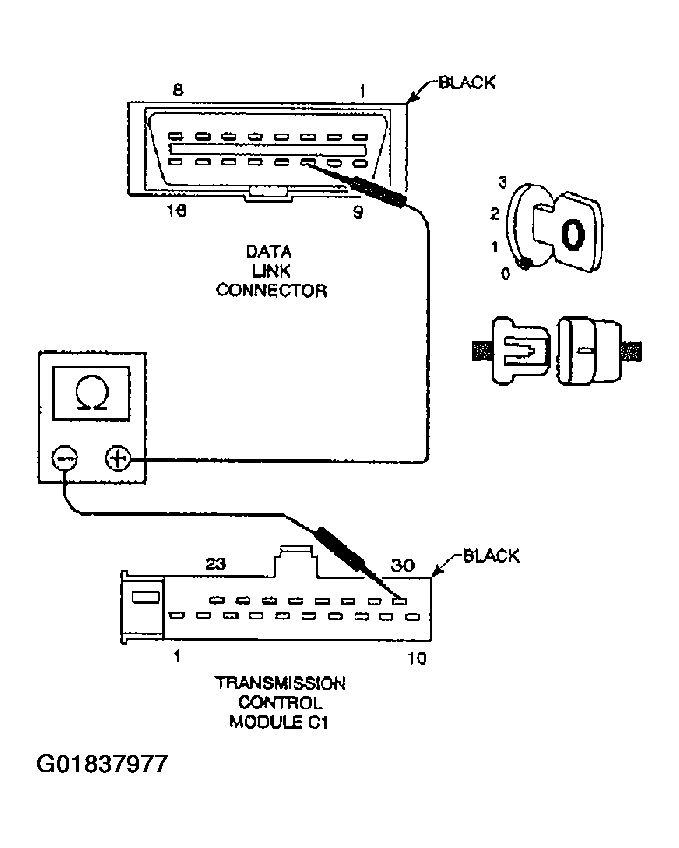

Fig 1: Measuring Resistance Of SCI Transmit Circuit From TCM Harness Connector To DLC
G01837977Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 4
  2. No  >> Repair the SCI Transmit circuit for an open.

    Perform TRANSMISSION VERIFICATION TEST. See ELECTRICAL DIAGNOSTICS - NAG1 article.
