1. Traction System Relay Output Circuit Open

Turn the ignition off.

Disconnect the SLA harness connector.

NOTE: Check connector - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Traction System Relay Output circuit at the SLA harness connector.

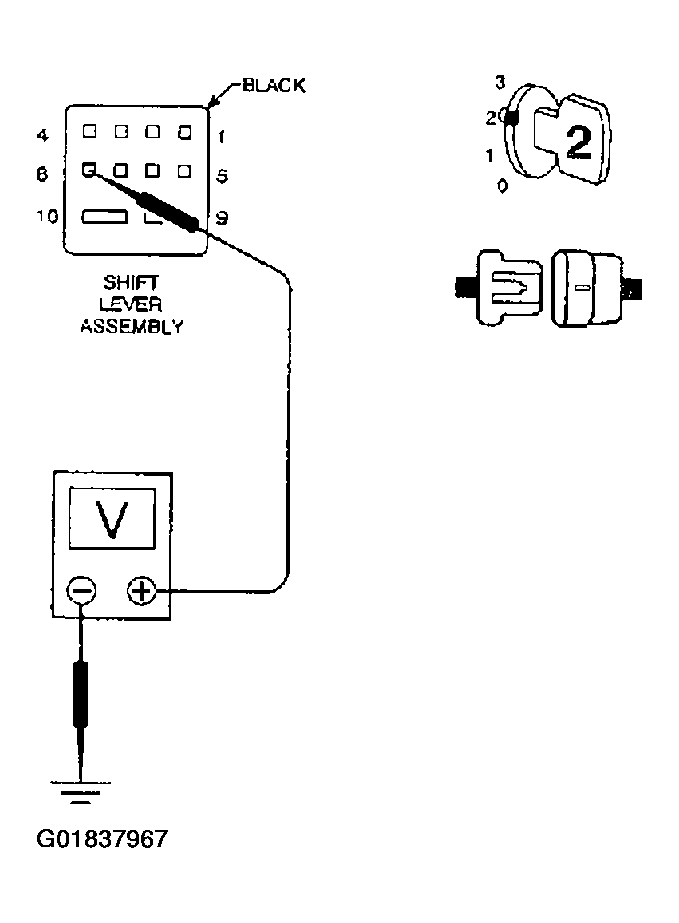

Fig 1: Measuring Voltage Of Traction System Relay Output Circuit At SLA Harness Connector
G01837967Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 2
  2. No  >> Repair the Traction System Relay Output circuit for an open.

    Perform TRANSMISSION VERIFICATION TEST. See ELECTRICAL DIAGNOSTICS - NAG1 article.
