3. Ground Circuit Open

Turn the ignition off.

Measure the resistance of the Ground circuit from the SKREEM harness connector.

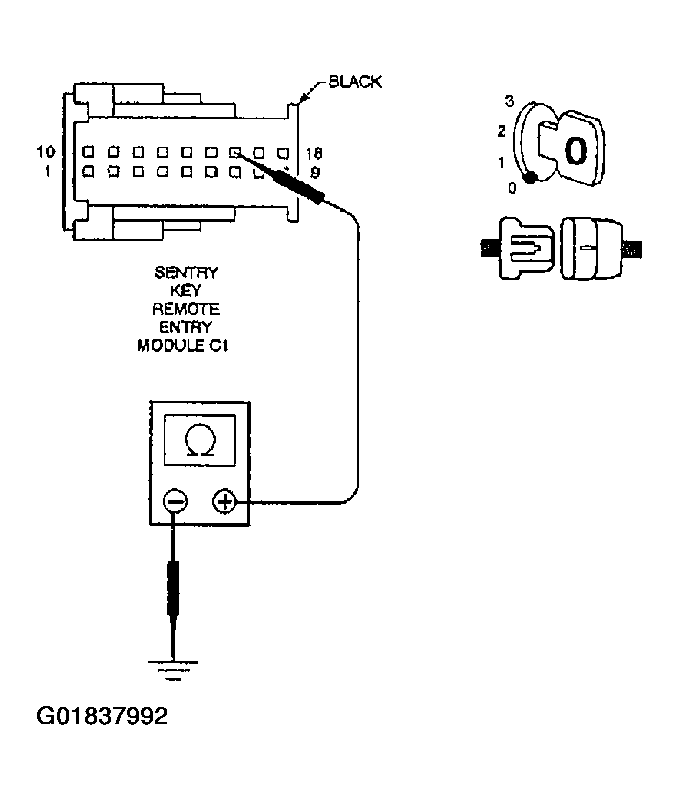

Fig 1: Measuring Resistance Of Ground Circuit From SKREEM Harness Connector
G01837992Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 4
  2. No  >> Repair the Ground circuit for an open.

    See BODY VERIFICATION TEST  .
