2. Fused Ignition Switch Output Circuit Open

With the ignition on.

Measure the voltage of the Fused Ignition Switch Output circuit at the SKREEM harness connector.

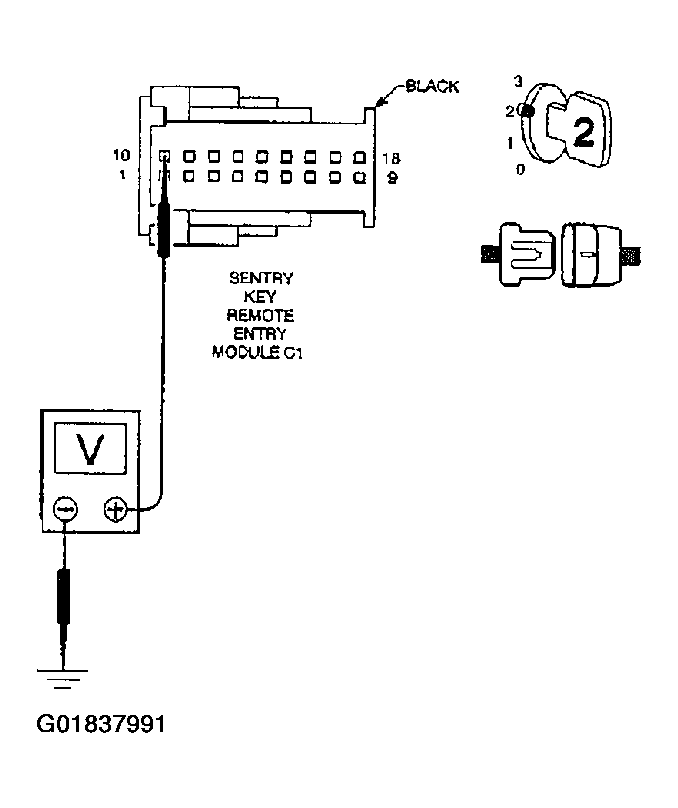

Fig 1: Measuring Voltage Of Fused Ignition Switch Output Circuit At SKREEM Harness Connector
G01837991Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 3
  2. No  >> Repair the Fused Ignition Switch Output circuit for an open.

    See BODY VERIFICATION TEST  .
