1. Fused B+ Circuit Open

Turn the ignition off.

Disconnect the SKREEM C1 harness connector.

NOTE: Check connector - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Fused B+ circuit at the SKREEM harness connector.

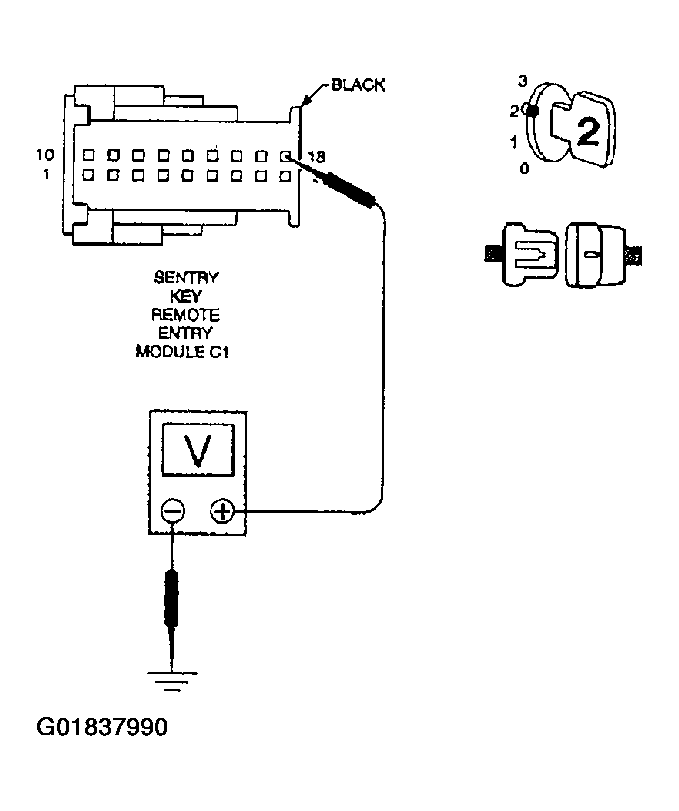

Fig 1: Measuring Voltage Of Fused B+ Circuit At SKREEM Harness Connector
G01837990Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 2
  2. No  >> Repair the Fused B+ circuit for an open.

    See BODY VERIFICATION TEST  .
