7. Sci Transmit Circuit Open

Turn the ignition off.

Measure the resistance of the PCM SCI Transmit circuit from the PCM harness connector to the DLC.

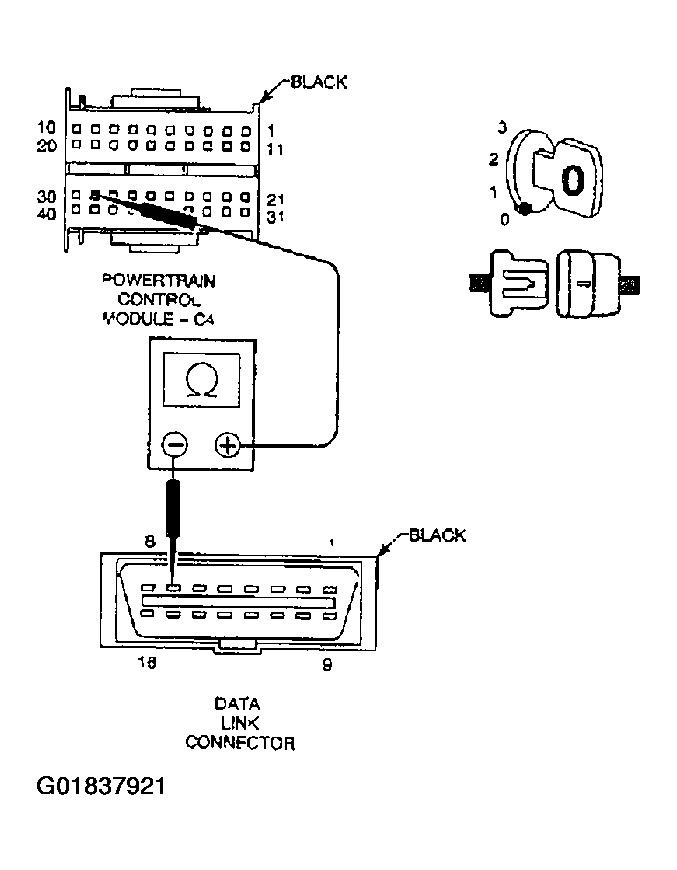

Fig 1: Measuring Resistance Of PCM SCI Transmit Circuit From PCM Harness Connector To DLC
G01837921Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 8
  2. No  >> Repair the PCM SCI Transmit circuit for an open.

    Perform POWERTRAIN VERIFICATION TEST - VER 2 in ENGINE - ELECTRICAL DIAGNOSTICS article.
