4. Sci Receive Circuit Open

With the ignition off.

Disconnect the PCM C4 harness connector.

NOTE: Check connector - Clean/repair as necessary.

Measure the resistance of the PCM SCI Receive circuit from the PCM C4 harness connector to the DLC.

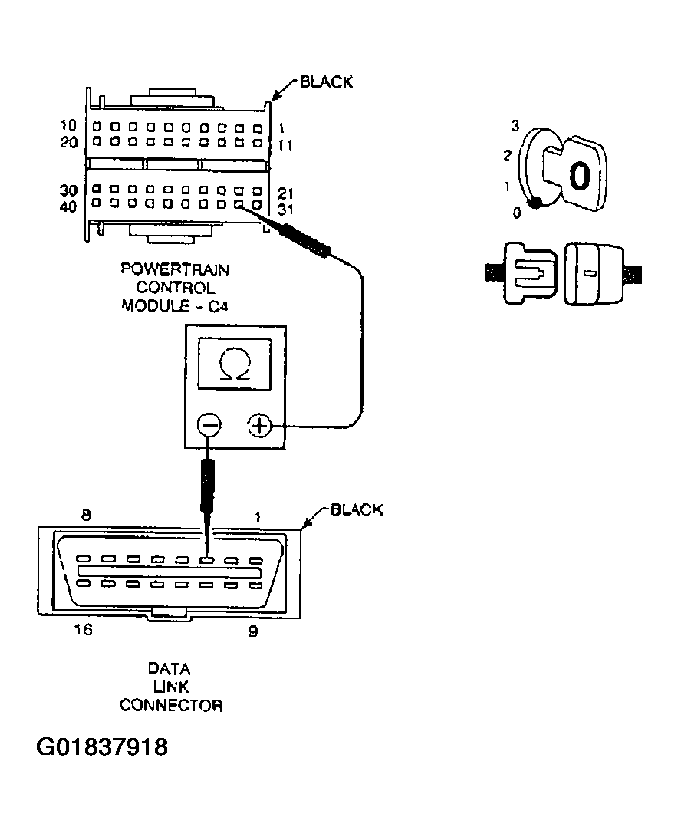

Fig 1: Measuring PCM SCI Receive Circuit Resistance From PCM C4 Harness Connector To DLC
G01837918Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 5
  2. No  >> Repair the PCM SCI Receive circuit for an open.

    Perform POWERTRAIN VERIFICATION TEST - VER 2 in ENGINE - ELECTRICAL DIAGNOSTICS article.
