2. Fused Engine Control Relay Output Circuit Open

Turn the ignition on.

Measure the voltage of the Fused Engine Control Relay Output circuit at the PCM C5 harness connector.

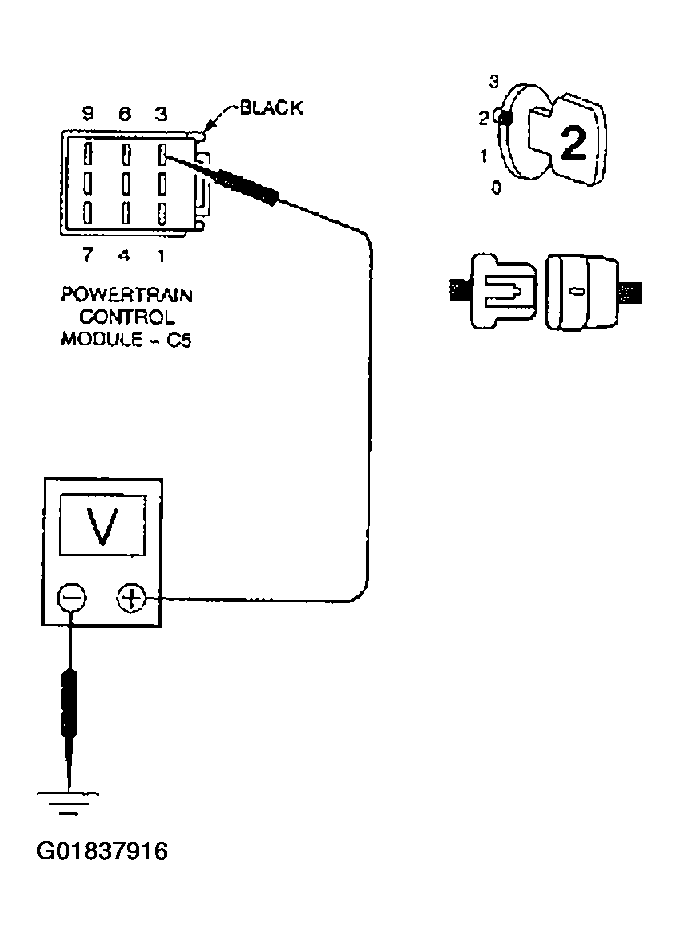

Fig 1: Measuring Fused Engine Control Relay Output At PCM C5 Harness Connector
G01837916Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 3
  2. No  >> Repair the Fused Engine Control Relay Output circuit for an open.

    Perform POWERTRAIN VERIFICATION TEST - VER 2 in ENGINE - ELECTRICAL DIAGNOSTICS article.
