1. Fused B(+) Circuit Open

Turn the ignition off.

Disconnect the PCM C5 harness connector.

NOTE: Check connector - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Fused Ignition Switch Output circuit at the PCM C5 harness connector.

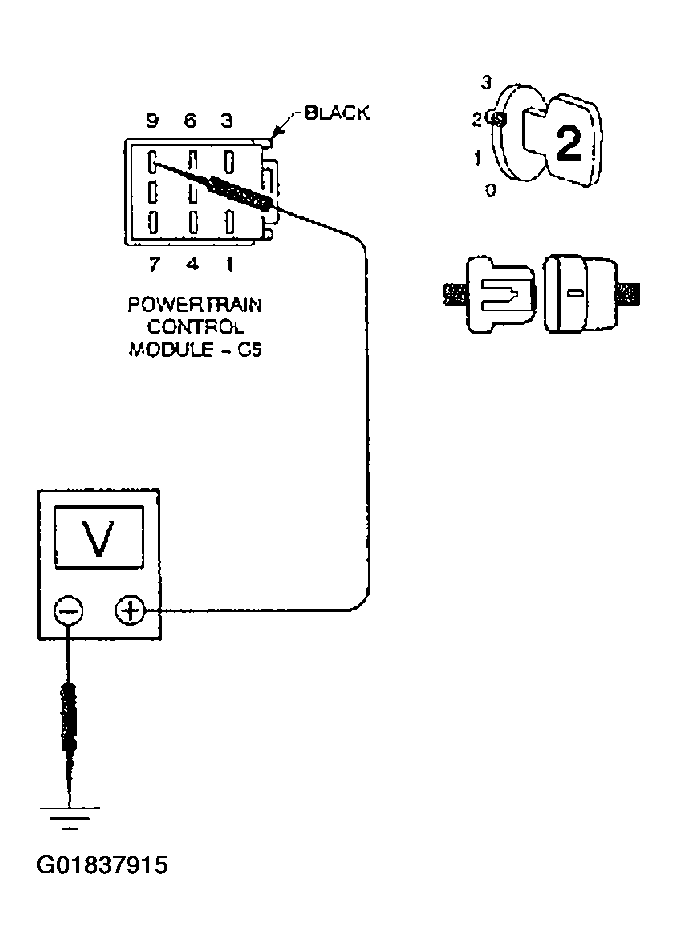

Fig 1: Measuring Fused Ignition Switch Output Circuit Voltage At PCM C5 Harness Connector
G01837915Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 2
  2. No  >> Repair the Fused Ignition Switch Output circuit for an open.

    Perform POWERTRAIN VERIFICATION TEST - VER 2 in ENGINE - ELECTRICAL DIAGNOSTICS article.
