Possible Causes

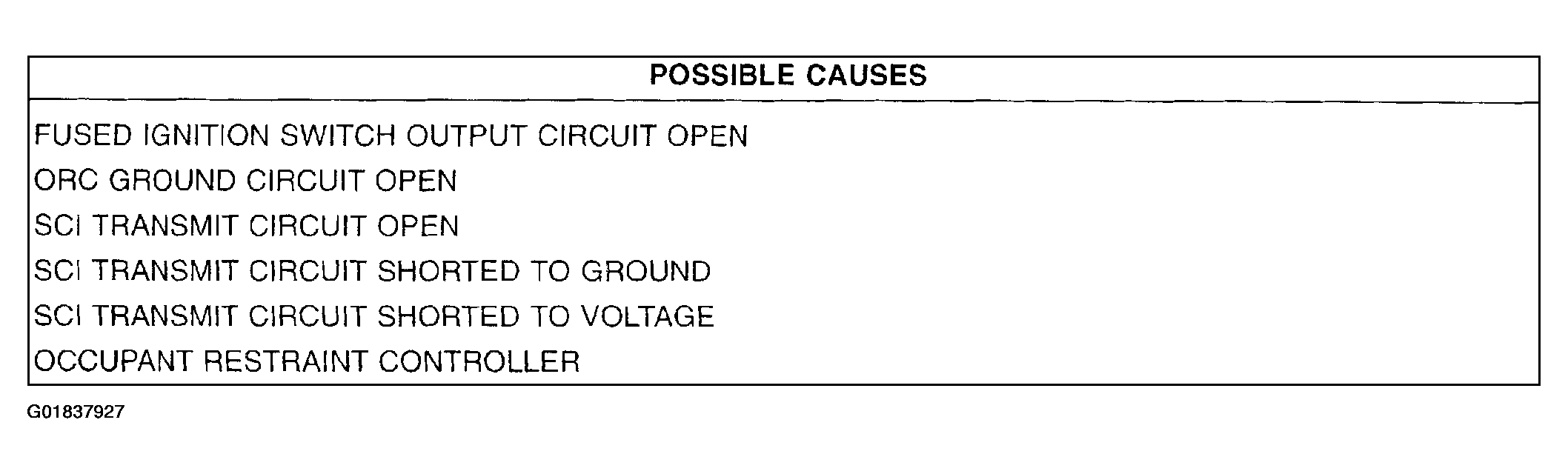

Fig 1: Identifying No Response From Occupant Restraint Controller Possible Causes
G01837927Courtesy of DAIMLERCHRYSLER CORP.

For a complete Data Link Connector Circuit Diagram, see SCHEMATICS AND DIAGRAMS  .
