3. Sci Transmit Circuit Open

Turn the ignition off.

Measure the resistance of the SCI Transmit circuit from the ORC harness connector to the DLC.

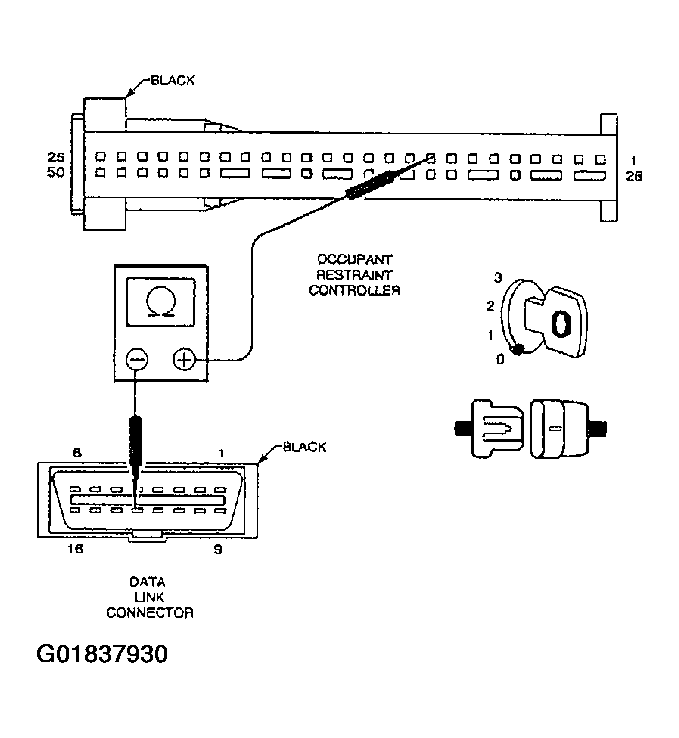

Fig 1: Measuring Resistance Of SCI Transmit Circuit From ORC Harness Connector To DLC
G01837930Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 4
  2. No  >> Repair the SCI Transmit circuit for an open.
WARNING: WHEN RECONNECTING AIRBAG SYSTEM COMPONENTS, THE IGNITION MUST BE TURNED OFF AND THE BATTERY MUST BE DISCONNECTED.

Perform AIR BAG VERIFICATION TEST, AIR BAG RESTRAINT SYSTEMS .
