2. Traction System Relay Output Circuit Open

With the ignition on.

Measure the voltage of the Traction System Relay Output circuit at the CAB harness connector.

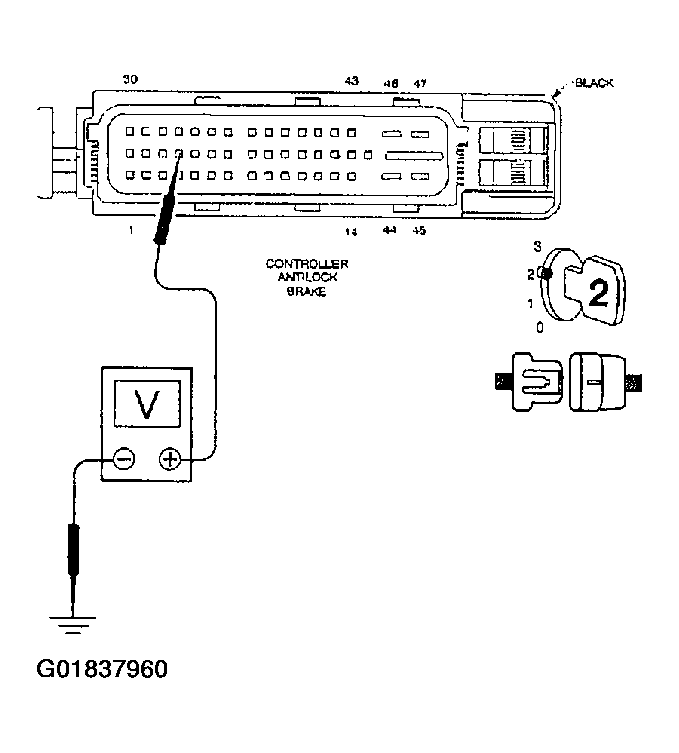

Fig 1: Measuring Voltage Of Traction System Relay Output Circuit At CAB Harness Connector
G01837960Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go to 3
  2. No  >> Repair the Traction System Relay Output circuit for an open.

    Perform ABS VERIFICATION TEST. See ANTI-LOCK BRAKES article.
