3. Ground Circuit(S) Open

Turn the ignition off.

Measure the resistance of the Ground circuits from the BCM harness connector.

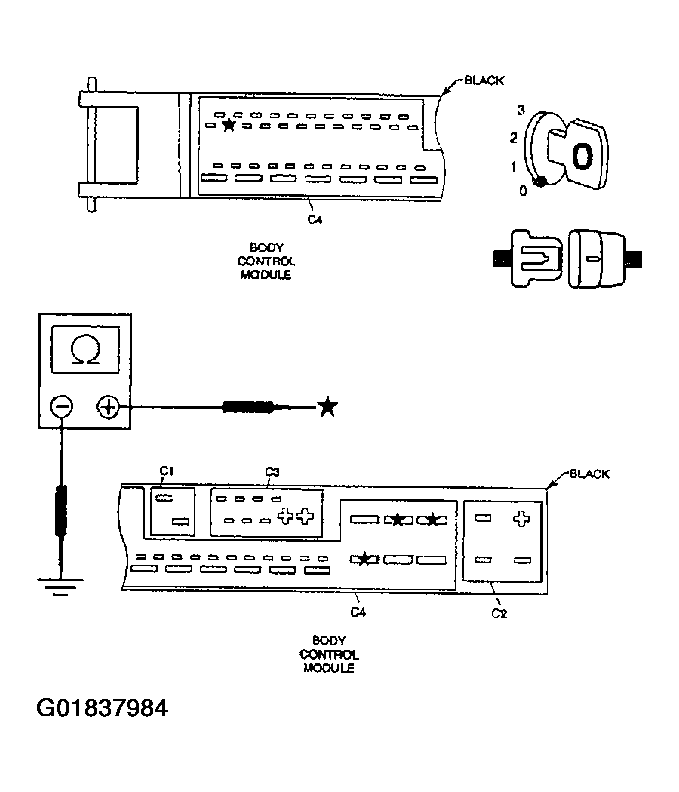

Fig 1: Measuring Resistance Of Ground Circuts From BCM Harness Connector
G01837984Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 4
  2. No  >> Repair the Ground circuit(s) for an open.

    See BODY VERIFICATION TEST  .
